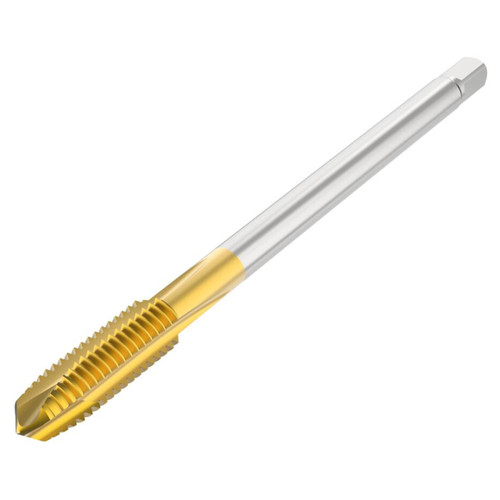

Seco Tools 10139482 | T32-PN01B06-3X0.5-63R M3 Thread Size x 0.118" Diameter x 0.087" Shank x 2.252" OAL 3 Flute TiAIN+TiN Coated HSS-E Straight Flute Tap

$28.01
Brand:
Seco Tools
Thread Size:
M3
Overall Length (Inch):
2-1/4"
Overall Length (Decimal Inch):
2.2520"
Overall Length (mm):
57.20mm
Number of Flutes:
3
Material:
HSS-E
Finish/Coating:
TiAIN+TiN
Thread Standard:
M
interval quantity:
1
SKU:
17994358
Weight:
0.00 LBS
Shipping:
Calculated at Checkout
Seco Tools 10139482 | T32-PN01B06-3X0.5-63R M3 Thread Size x 0.118" Diameter x 0.087" Shank x 2.252" OAL 3 Flute TiAIN+TiN Coated HSS-E Straight Flute Tap

Product Specifications
Manufacturer Part Number10139482
Thread Diameter (Decimal Inch)0.118"
Thread Diameter (mm)3.00mm
Threading Chamfer Length (Decimal Inch)0.087"
Threading Chamfer Length (mm)2.20mm
Tap Chamfer Length (Decimal Inch)0.087"
Tap Chamfer Length (mm)2.20mm
Connection Diameter Machine Side (Decimal Inch)0.087"
Connection Diameter Machine Side (mm)2.20mm
Shank Diameter (Decimal Inch)0.087"
Shank Diameter (mm)2.20mm
Functional Length (Decimal Inch)2.118"
Functional Length (mm)53.80mm
Usable Length (Decimal Inch)1.417"
Usable Length (mm)36.00mm
Overall Length (Decimal Inch)2.252"
Overall Length (mm)57.20mm
Thread Length (Decimal Inch)0.433"
Thread Length (mm)11.00mm
Thread Diameter SizeM3
Recommended Premachined Hole Diameter (Decimal Inch)0.098"
Recommended Premachined Hole Diameter (mm)2.50mm
Connection Size Code2.20X1.80
Connection Size Code Machine Side2.20X1.80
Maximum Premachined Hole Diameter (Decimal Inch)0.102"
Maximum Premachined Hole Diameter (mm)2.60mm
Minimum Thread Pitch (Decimal Inch)0.020"
Minimum Thread Pitch (mm)0.50mm
Maximum Thread Pitch (Decimal Inch)0.020"
Maximum Thread Pitch (mm)0.50mm
Number of Flute3
Shank TypeCylindrical
Thread Tolerance Class6H
Threading Chamfer TypeB
Thread Form TypeM
Cutting DirectionRight Hand
Cutting Geometry TypeT32
Cutting Geometry Type TechnicalStraight with spiral point
MaterialHSS-E
CoatingTiAIN+TiN
Product TypeStraight Flute Tap
