Product Specifications
| Manufacturer Part Number | 10189790 |

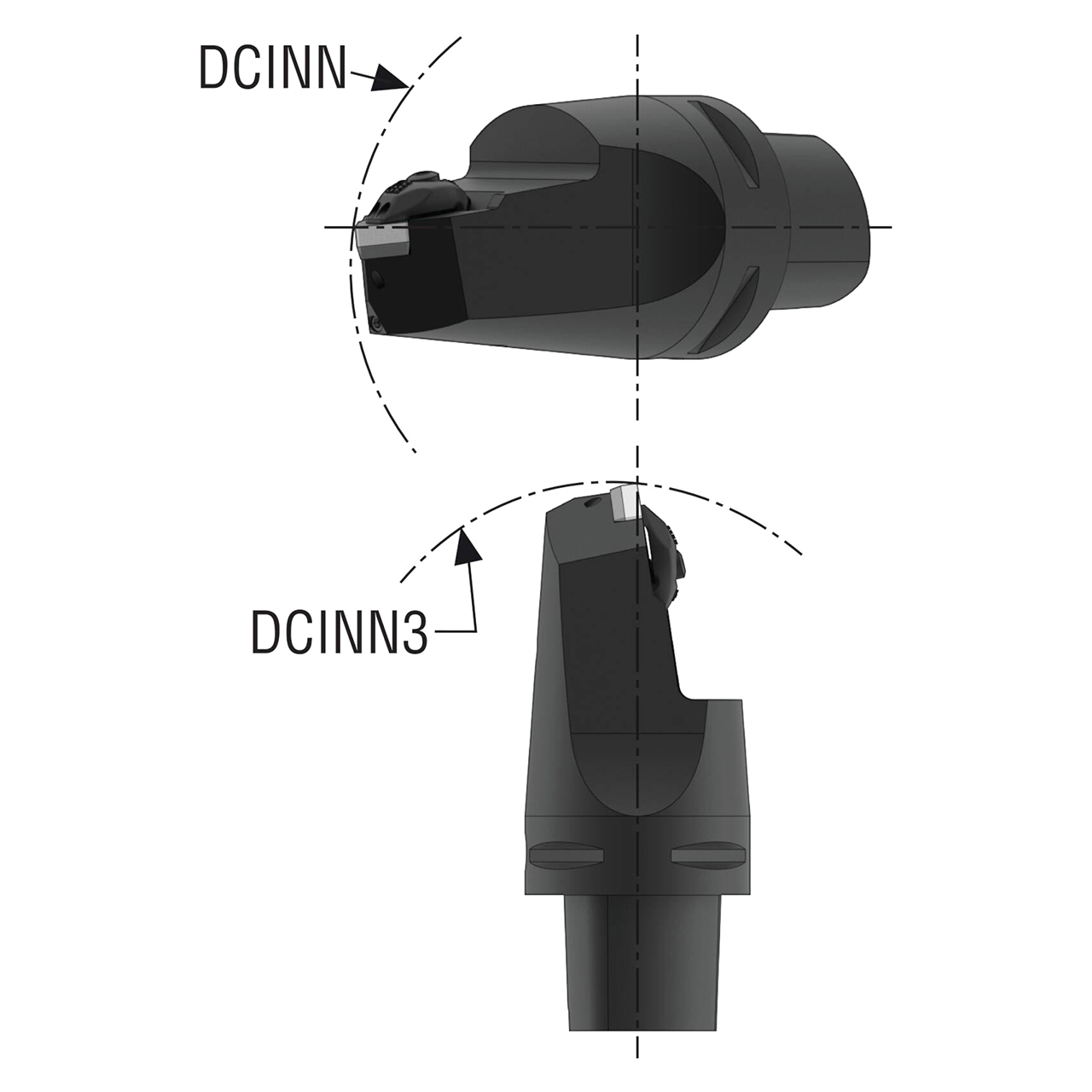

| Minimum Cutting Diameter Internal (mm) | 140.00mm |
| Contact Surface Diameter Machine Side (mm) | 63.00mm |
| Maximum Cutting Depth (mm) | 15.47mm |
| Functional Length (mm) | 130.00mm |
| Workpiece Side Body Angle (Degree) | 45 Degree |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 10 |
| Data Chip Provision | 1 |
| Cutting Direction | Right Hand |
| Insert Clamping System | D |
| Tool Cutting Edge Angle (Degree) | 95 Degree |
| Tool Cutting Edge Angle Code | M |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 140 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 95 Degree |
| Maximum Ramping Angle (Degree) | 39 Degree |
| Insert Shape Code | V |
| Shank Type | Seco-Capto |
| Insert Seat Size Code | 1604 |
| Version (Internal/External/Both) | External |
| Product Type | Modular Turning Head |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Direction:
Right Hand
interval quantity:
1
