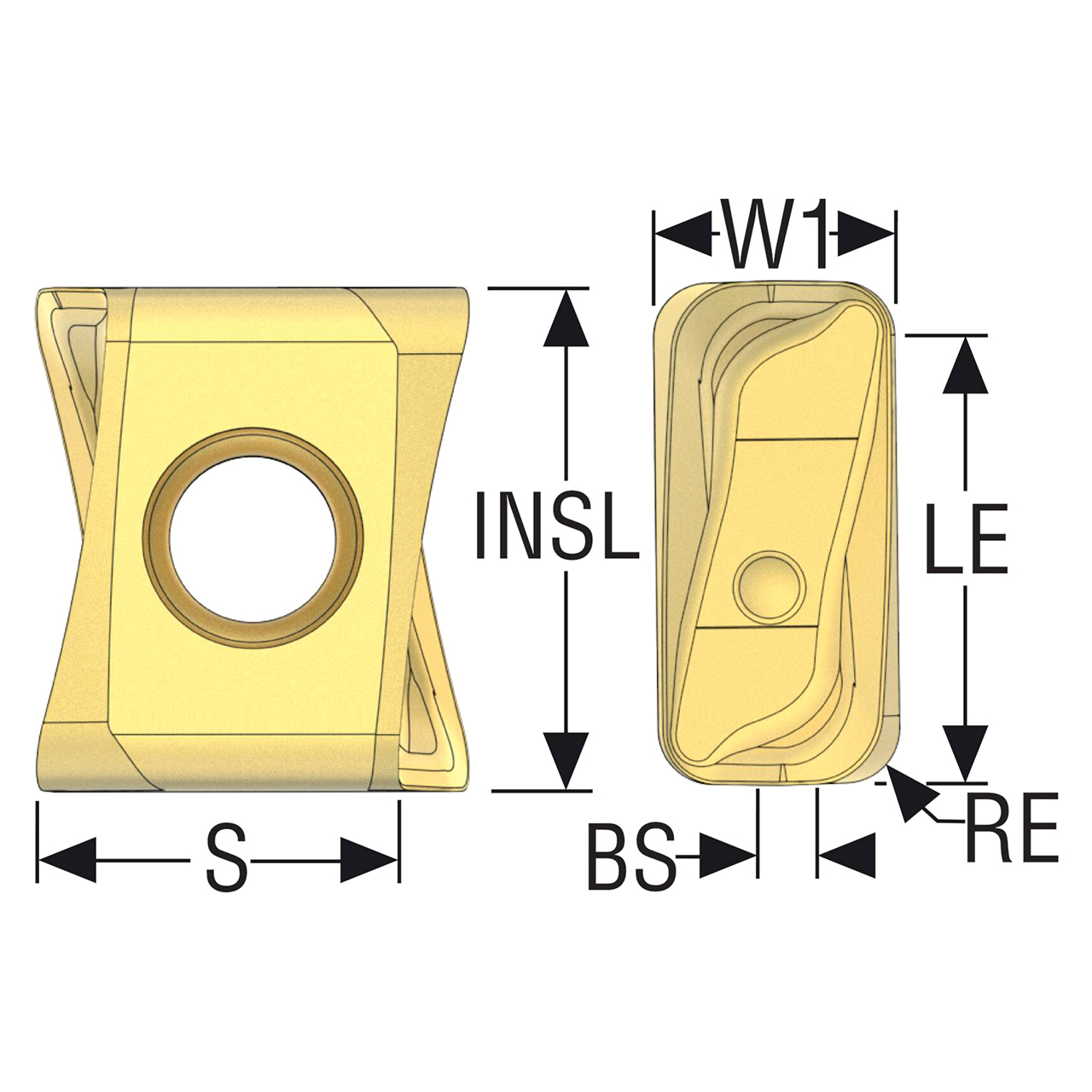

Seco Tools 10198829 | LOEX080408TR-M08 0.80mm Corner Radius x 6.60mm Thickness 4 Cutting Edge Carbide Milling Insert

$26.49
Brand:
Seco Tools
Material:
Carbide
Width (Inch):
9/52"
Width (Decimal Inch):
0.1732"
Width (mm):
4.40mm
Length (Inch):
26/71"
Length (Decimal Inch):
0.3661"
Length (mm):
9.30mm
Thickness (Inch):
20/77"
Thickness (Decimal Inch):
0.2598"
Thickness (mm):
6.60mm
interval quantity:
1
SKU:
23295039
Weight:
0.01 LBS
Shipping:
Calculated at Checkout
Seco Tools 10198829 | LOEX080408TR-M08 0.80mm Corner Radius x 6.60mm Thickness 4 Cutting Edge Carbide Milling Insert

Product Specifications
Manufacturer Part Number10198829
Cutting Edge Effective Length (mm)8.30mm
Wiper Edge Length (mm)0.92mm
Insert Length (mm)9.30mm
Corner Radius (mm)0.80mm
Insert Thickness (mm)6.60mm
Cutting Edge Count4
Insert Rake Angle (Degree)34 Degree
Insert HandRight Hand
Cutting Geometry TypeM
Cutting Geometry Type TechnicalM08
Pocket Seat Code of The CutterLO.X1207
Insert Size And ShapeLOEX1207
Insert Shape CodeL
MaterialCarbide
Product TypeMilling Insert
