Product Specifications

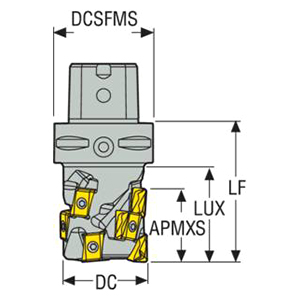

| Manufacturer Part Number | 10215194 |
| Cutting Diameter (mm) | 44.00mm |
| Contact Surface Diameter Machine Side (mm) | 50.00mm |
| Functional Length (mm) | 95.00mm |
| Overall Length (mm) | 125.00mm |
| Maximum Depth of Cut (mm) | 58.00mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Flute Helix Hand | Right Hand |
| Rake Radial Angle (Degree) | -24.5 Degree |
| Rake Radial Angle (Degree) | -24.5 Degree |
| Rake Orthogonal Angle (Degree) | -24.5 Degree |
| Axial Rake Angle (Degree) | -5.5 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Number of Flute | 3 |
| Maximum Rotational Speed (rpm) | 10600 rpm |
| Insert Shape Code | L |
| Shank Type | Seco-Capto |
| Product Type | Indexable Square-Shoulder End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Diameter (Inch):
1-52/71"
Cutting Diameter (Decimal Inch):
1.7323"
Cutting Diameter (mm):
44.00mm
Shank Type:
Capto
Overall Length (Inch):
4-82/89"
Overall Length (Decimal Inch):
4.9213"
Overall Length (mm):
125.00mm
