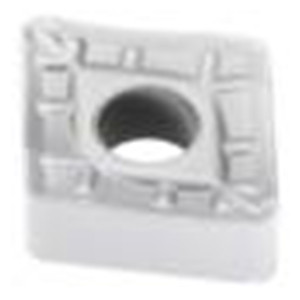

Seco Tools 74017392 | CNMM160612-R6 CN1606 Insert Size x 15.88mm Inscribed Circle Diameter x 1.20mm Corner Radius 2 Cutting Edge CVD Coated Carbide Turning Insert

$22.72
Brand:
Seco Tools
Inscribed Circle (Inch):
5/8"
Inscribed Circle (Decimal Inch):
0.6250"
Inscribed Circle (mm):
15.88mm
Thickness (Inch):
1/4"
Thickness (Decimal Inch):
0.2500"
Thickness (mm):
6.35mm
Corner Radius (Inch):
3/64"
Corner Radius (Decimal Inch):
0.0470"
Corner Radius (mm):
1.20mm
interval quantity:
1
SKU:
23289448
Weight:
0.04 LBS
Shipping:
Calculated at Checkout
Seco Tools 74017392 | CNMM160612-R6 CN1606 Insert Size x 15.88mm Inscribed Circle Diameter x 1.20mm Corner Radius 2 Cutting Edge CVD Coated Carbide Turning Insert

Product Specifications
Manufacturer Part Number74017392
Inscribed Circle Diameter (Decimal Inch)0.625"
Inscribed Circle Diameter (mm)15.88mm
Fixing Hole Diameter (Decimal Inch)0.250"
Fixing Hole Diameter (mm)6.35mm
Corner Radius (Decimal Inch)0.047"
Corner Radius (mm)1.20mm
Cutting Edge Effective Length (Decimal Inch)0.587"
Cutting Edge Effective Length (mm)14.90mm
Theoretical Cutting Edge Length (Decimal Inch)0.634"
Theoretical Cutting Edge Length (mm)16.10mm
Insert Thickness (Decimal Inch)0.250"
Insert Thickness (mm)6.35mm
Cutting Edge Count2
Insert Size And ShapeCN1606
Insert Included Angle (Degree)80 Degree
MaterialCarbide
Insert HandNeutral
Insert Shape CodeC
Product TypeTurning Insert

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Seco Tools
Inscribed Circle (Inch):
5/8"
Inscribed Circle (Decimal Inch):
0.6250"
Inscribed Circle (mm):
15.88mm
Thickness (Inch):
1/4"
Thickness (Decimal Inch):
0.2500"
Thickness (mm):
6.35mm
Corner Radius (Inch):
3/64"
Corner Radius (Decimal Inch):
0.0470"
Corner Radius (mm):
1.20mm
interval quantity:
1
