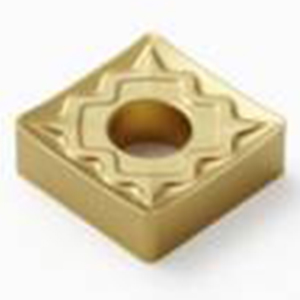

Seco Tools 74017416 | SNMM120408-R6 SN1204 Insert Size x 12.70mm Inscribed Circle Diameter x 0.80mm Corner Radius 4 Cutting Edge CVD Coated Carbide Turning Insert

$14.36
Brand:
Seco Tools
Inscribed Circle (Inch):
1/2"
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.76mm
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0320"
Corner Radius (mm):
0.80mm
interval quantity:
1
SKU:
23289451
Weight:
0.02 LBS
Shipping:
Calculated at Checkout
Seco Tools 74017416 | SNMM120408-R6 SN1204 Insert Size x 12.70mm Inscribed Circle Diameter x 0.80mm Corner Radius 4 Cutting Edge CVD Coated Carbide Turning Insert

Product Specifications
Manufacturer Part Number74017416
Inscribed Circle Diameter (Decimal Inch)0.500"
Inscribed Circle Diameter (mm)12.70mm
Fixing Hole Diameter (Decimal Inch)0.203"
Fixing Hole Diameter (mm)5.15mm
Corner Radius (Decimal Inch)0.032"
Corner Radius (mm)0.80mm
Cutting Edge Effective Length (Decimal Inch)0.469"
Cutting Edge Effective Length (mm)11.90mm
Theoretical Cutting Edge Length (Decimal Inch)0.500"
Theoretical Cutting Edge Length (mm)12.70mm
Insert Thickness (Decimal Inch)0.187"
Insert Thickness (mm)4.76mm
Cutting Edge Count4
Insert Size And ShapeSN1204
Insert Included Angle (Degree)90 Degree
MaterialCarbide
Insert HandNeutral
Insert Shape CodeS
Product TypeTurning Insert

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Seco Tools
Inscribed Circle (Inch):
1/2"
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.76mm
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0320"
Corner Radius (mm):
0.80mm
interval quantity:
1
