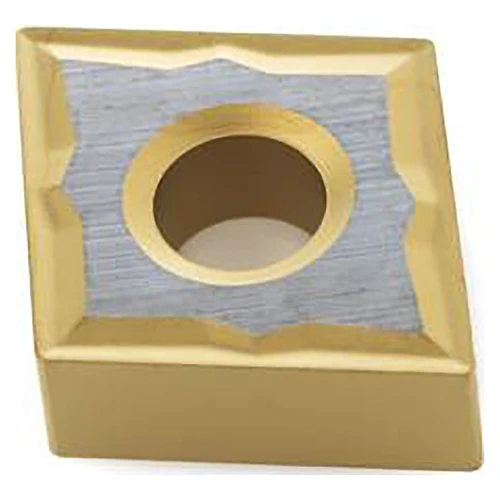

Seco Tools 74018469 | CNMG120404-M3 CN1204 Insert Size x 12.70mm Inscribed Circle Diameter x 0.40mm Corner Radius 4 Cutting Edge CVD Coated Carbide Turning Insert

$14.36
Brand:
Seco Tools
Inscribed Circle (Inch):
1/2"
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.76mm
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0160"
Corner Radius (mm):
0.40mm
interval quantity:
1
SKU:
23289467
Weight:
0.02 LBS
Shipping:
Calculated at Checkout
Seco Tools 74018469 | CNMG120404-M3 CN1204 Insert Size x 12.70mm Inscribed Circle Diameter x 0.40mm Corner Radius 4 Cutting Edge CVD Coated Carbide Turning Insert

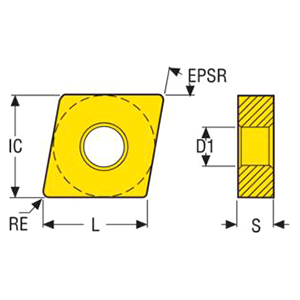

Product Specifications
Manufacturer Part Number74018469
Inscribed Circle Diameter (Decimal Inch)0.500"
Inscribed Circle Diameter (mm)12.70mm
Fixing Hole Diameter (Decimal Inch)0.203"
Fixing Hole Diameter (mm)5.15mm
Corner Radius (Decimal Inch)0.016"
Corner Radius (mm)0.40mm
Cutting Edge Effective Length (Decimal Inch)0.492"
Cutting Edge Effective Length (mm)12.50mm
Theoretical Cutting Edge Length (Decimal Inch)0.508"
Theoretical Cutting Edge Length (mm)12.90mm
Insert Thickness (Decimal Inch)0.187"
Insert Thickness (mm)4.76mm
Cutting Edge Count4
Insert Size And ShapeCN1204
Insert Included Angle (Degree)80 Degree
MaterialCarbide
Insert HandNeutral
Insert Shape CodeC
Product TypeTurning Insert
