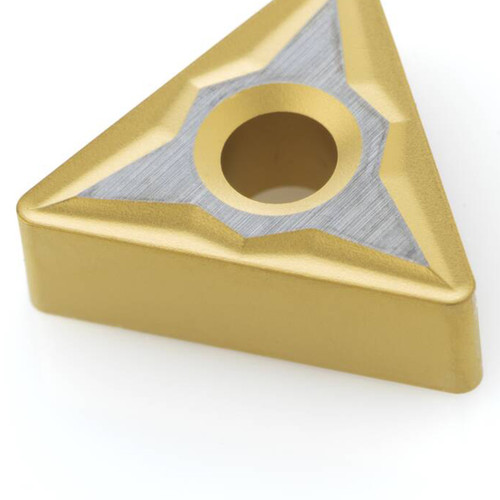

Seco Tools 74018476 | TNMG160404-M3 TN1604 Insert Size x 9.53mm Inscribed Circle Diameter x 0.40mm Corner Radius 6 Cutting Edge CVD Coated Carbide Turning Insert

$12.58
Brand:
Seco Tools
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.53mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.76mm
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0160"
Corner Radius (mm):
0.40mm
interval quantity:
1
SKU:
23289471
UPC:
Weight:
0.02 LBS
Shipping:
Calculated at Checkout
Seco Tools 74018476 | TNMG160404-M3 TN1604 Insert Size x 9.53mm Inscribed Circle Diameter x 0.40mm Corner Radius 6 Cutting Edge CVD Coated Carbide Turning Insert

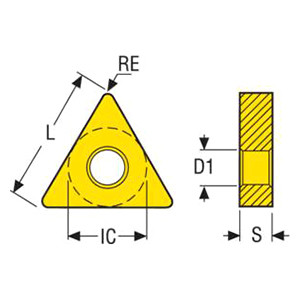

Product Specifications
Manufacturer Part Number74018476
Inscribed Circle Diameter (Decimal Inch)0.375"
Inscribed Circle Diameter (mm)9.53mm
Fixing Hole Diameter (Decimal Inch)0.150"
Fixing Hole Diameter (mm)3.81mm
Corner Radius (Decimal Inch)0.016"
Corner Radius (mm)0.40mm
Cutting Edge Effective Length (Decimal Inch)0.610"
Cutting Edge Effective Length (mm)15.50mm
Theoretical Cutting Edge Length (Decimal Inch)0.650"
Theoretical Cutting Edge Length (mm)16.50mm
Insert Thickness (Decimal Inch)0.187"
Insert Thickness (mm)4.76mm
Cutting Edge Count6
Insert Size And ShapeTN1604
Insert Included Angle (Degree)60 Degree
MaterialCarbide
Insert HandNeutral
Insert Shape CodeT
Product TypeTurning Insert

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Seco Tools
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.53mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.76mm
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0160"
Corner Radius (mm):
0.40mm
interval quantity:
1
