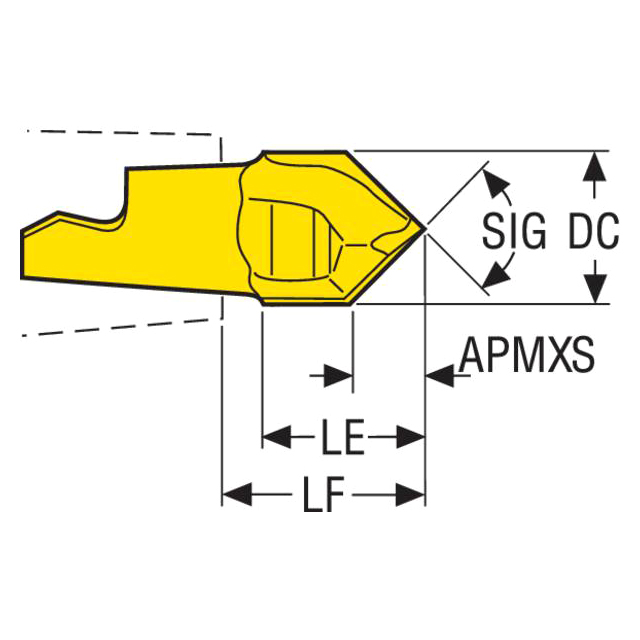

Product Specifications
| Manufacturer Part Number | 74034249 |
| Cutting Diameter (Decimal Inch) | 0.315" |
| Cutting Diameter (mm) | 8.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.085" |
| Maximum Depth of Cut (mm) | 2.15mm |
| Corner Chamfer Width (Decimal Inch) | 0.158" |
| Corner Chamfer Width (mm) | 4.00mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.328" |
| Cutting Edge Effective Length (mm) | 8.32mm |
| Functional Length (Decimal Inch) | 0.372" |
| Functional Length (mm) | 9.46mm |
| Torque (Nm) | 8Nm |
| Cutting Edge Count | 1 |
| Rake Radial Angle (Degree) | -10 Degree |
| Axial Rake Angle (Degree) | 9 Degree |
| Material | Carbide |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Corner Chamfer Angle (Degree) | 60 Degree |
| Point Length (Decimal Inch) | 0.085" |
| Point Length (mm) | 2.15mm |
| Point Angle (Degree) | 120 Degree |
| Peripheral Effective Cutting Edge Count | 2 |
| Peripheral Edges In The Tool | 2 |
| Product Type | Chamfer Milling Tip Insert |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Material:
Carbide
Cutting Diameter (Inch):
23/73"
Cutting Diameter (Decimal Inch):
0.3150"
Cutting Diameter (mm):
8.00mm
