Seco Tools 74034252 | TPMR160304-F1 TP1606 Insert Size x 9.52mm Inscribed Circle Diameter x 0.40mm Corner Radius 3 Cutting Edge CVD Coated Carbide Turning Insert

$12.43
Brand:
Seco Tools
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.52mm
Thickness (Inch):
1/8"
Thickness (Decimal Inch):
0.1250"
Thickness (mm):
3.18mm
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0160"
Corner Radius (mm):
0.40mm
interval quantity:
1
SKU:
23289670
Weight:
0.01 LBS
Shipping:
Calculated at Checkout
Seco Tools 74034252 | TPMR160304-F1 TP1606 Insert Size x 9.52mm Inscribed Circle Diameter x 0.40mm Corner Radius 3 Cutting Edge CVD Coated Carbide Turning Insert

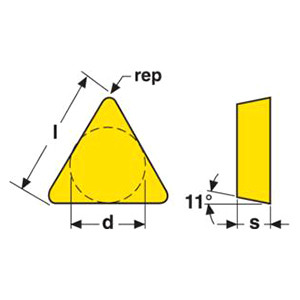

Product Specifications
Manufacturer Part Number74034252
Inscribed Circle Diameter (Decimal Inch)0.375"
Inscribed Circle Diameter (mm)9.52mm
Corner Radius (Decimal Inch)0.016"
Corner Radius (mm)0.40mm
Cutting Edge Effective Length (Decimal Inch)0.634"
Cutting Edge Effective Length (mm)16.10mm
Theoretical Cutting Edge Length (Decimal Inch)0.650"
Theoretical Cutting Edge Length (mm)16.50mm
Insert Thickness (Decimal Inch)0.125"
Insert Thickness (mm)3.18mm
Clearance Angle Major (Degree)11 Degree
Cutting Edge Count3
Insert Size And ShapeTP1606
Insert Included Angle (Degree)60 Degree
MaterialCarbide
Insert HandNeutral
Insert Shape CodeT
Product TypeTurning Insert

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
