Product Specifications
| Manufacturer Part Number | 75072193 |
| Cutting Diameter (Decimal Inch) | 0.625" |
| Cutting Diameter (mm) | 15.88mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.750" |
| Connection Diameter Machine Side (mm) | 19.05mm |
| Shank Diameter (Decimal Inch) | 0.750" |
| Shank Diameter (mm) | 19.05mm |
| Functional Length (Decimal Inch) | 1.732" |
| Functional Length (mm) | 44.00mm |
| Protruding Length (Decimal Inch) | 1.732" |
| Protruding Length (mm) | 44.00mm |
| Shank Length (Decimal Inch) | 2.559" |
| Shank Length (mm) | 65.00mm |
| Overall Length (Decimal Inch) | 3.740" |
| Overall Length (mm) | 95.00mm |
| Maximum Depth of Cut (mm) | 5.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.197" |
| Rake Radial Angle (Degree) | -5 Degree |
| Rake Radial Angle (Degree) | -5 Degree |
| Rake Orthogonal Angle (Degree) | -5 Degree |
| Axial Rake Angle (Degree) | 5 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Rotational Speed (rpm) | 49100 rpm |
| Shank Type | Weldon |

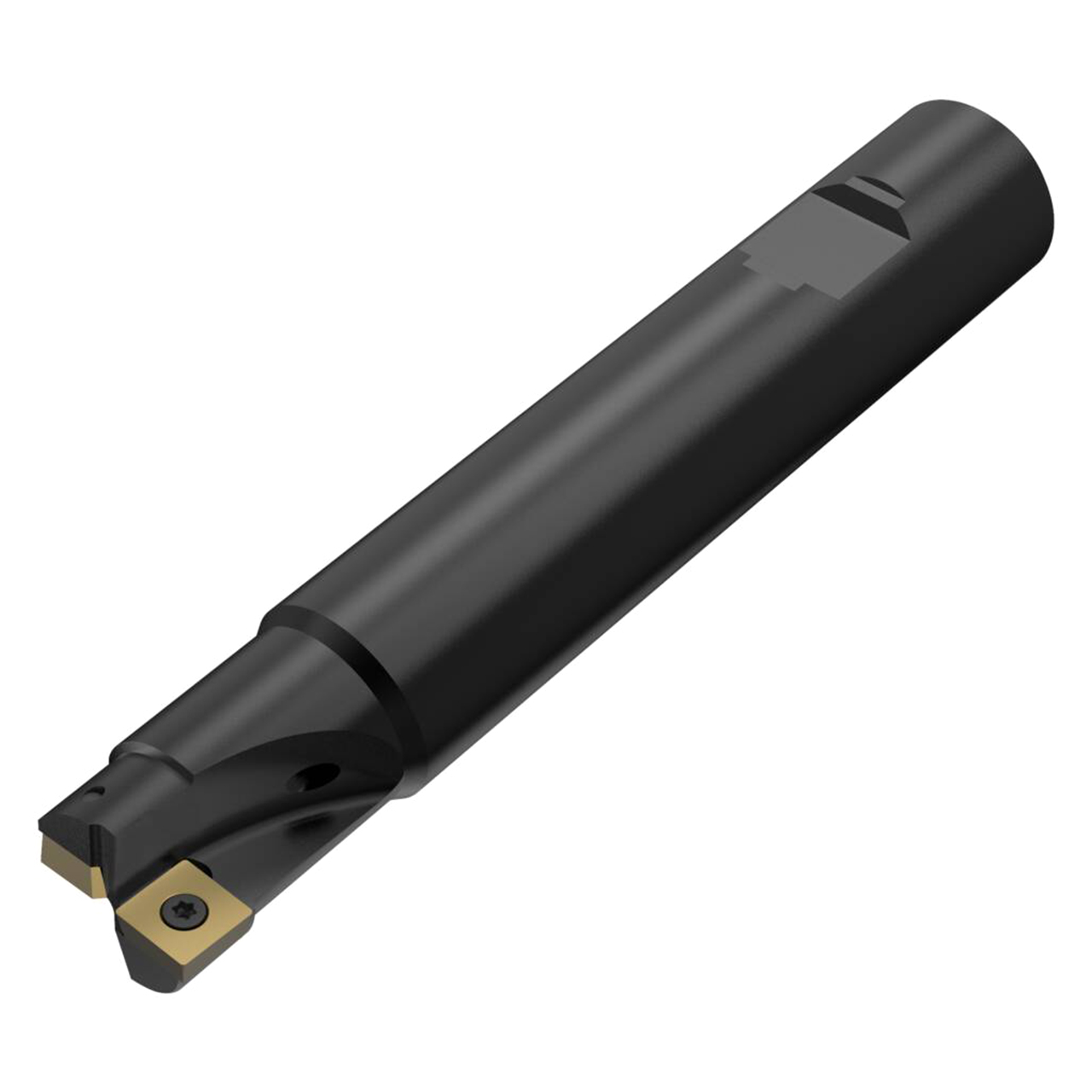

| Product Type | Indexable Square-Shoulder End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Diameter (Inch):
5/8"
Cutting Diameter (Decimal Inch):
0.6252"
Cutting Diameter (mm):
15.88mm
Shank Type:
Weldon
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
Overall Length (Inch):
3-57/77"
Overall Length (Decimal Inch):
3.7402"
Overall Length (mm):
95.00mm
interval quantity:
1
