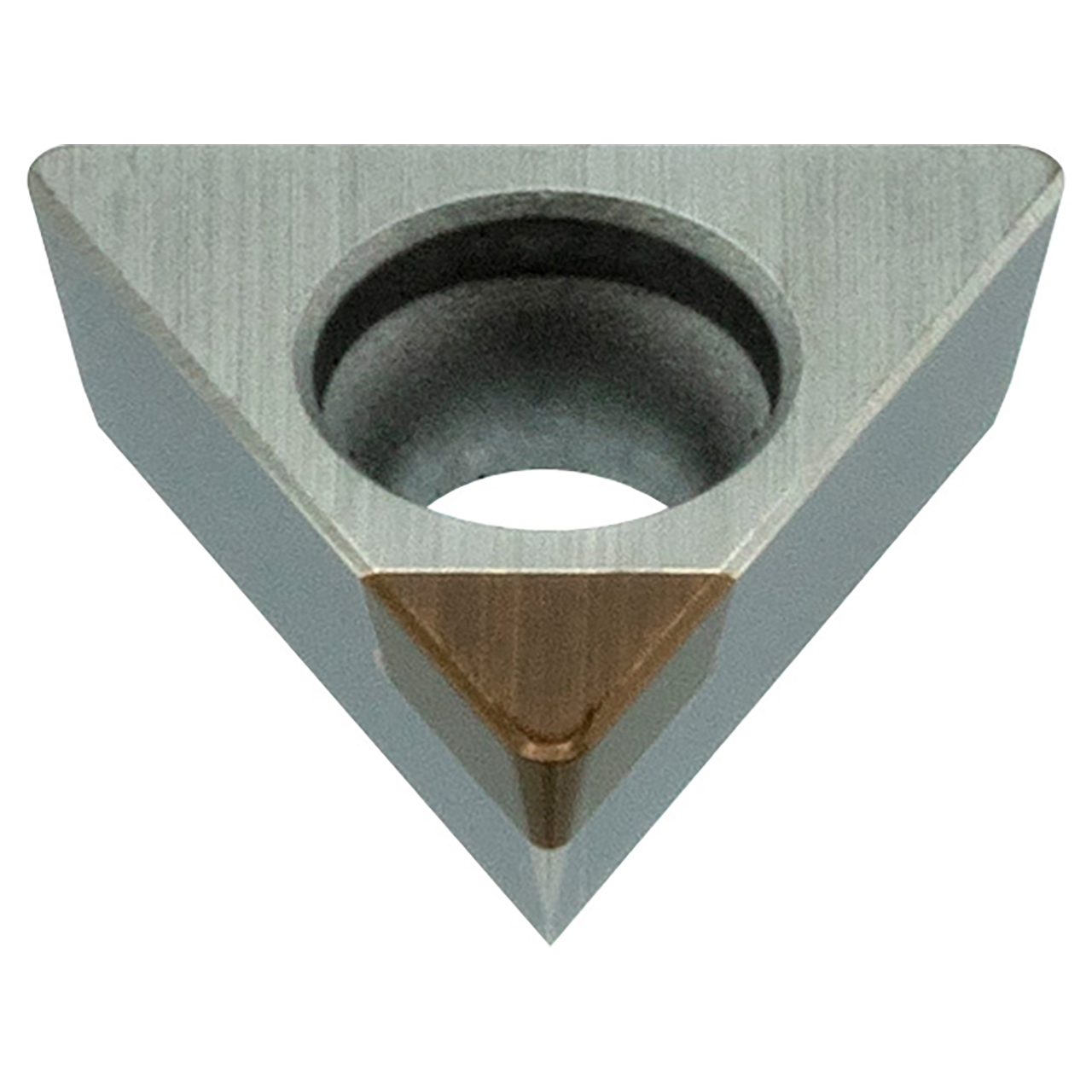

Product Specifications
| EDP Number | 16JYDTT |
| Product Code-ANSI | NUTPGA221-BN7000 |
| Product Code-ISO | NU-TPGW110304 |
| Manufacturer Grade Identification | BN7000 |
| Series | BN7000 |
| Effective Length (Inch) | 0.0984" |
| Effective Length (mm) | 2.50mm |
| Nose Radius (Inch) | 0.0157" |
| Nose Radius (mm) | 0.40mm |
| Inscribed Circle Diameter (Inch) | 0.2500" |
| Inscribed Circle Diameter (mm) | 6.35mm |
| Hole Diameter (mm) | 3.40mm |
| Insert Thickness (Inch) | 0.1252" |
| Insert Thickness (mm) | 3.18mm |
| Insert Size | 221 |
| Corner Angle | 60 Degree |
| Relief Angle | 11 Degree |
| Rake Angle | Positive |
| Insert Material | CBN |
| Insert Style | TPGA |
| Tolerance Class | G |
| Coating | Uncoated CBN |
| Insert Holding Method | Screw-On |
| Standard Designation of the Grade, Main Application | Cast Iron, Exotic Alloys, Powdered Metal |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Sumitomo
Insert Style:
TPGA
Insert Size:
221
Material:
CBN
Inscribed Circle (Inch):
1/4"
Inscribed Circle (Decimal Inch):
0.2500"
Inscribed Circle (mm):
6.35mm
Thickness (Inch):
1/8"
Thickness (Decimal Inch):
0.1252"
Thickness (mm):
3.18mm
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0157"
Corner Radius (mm):
0.40mm
Manufacturer's Grade:
BN7000
interval quantity:
1
Ships:
From California in 1-2 Days
