Product Specifications

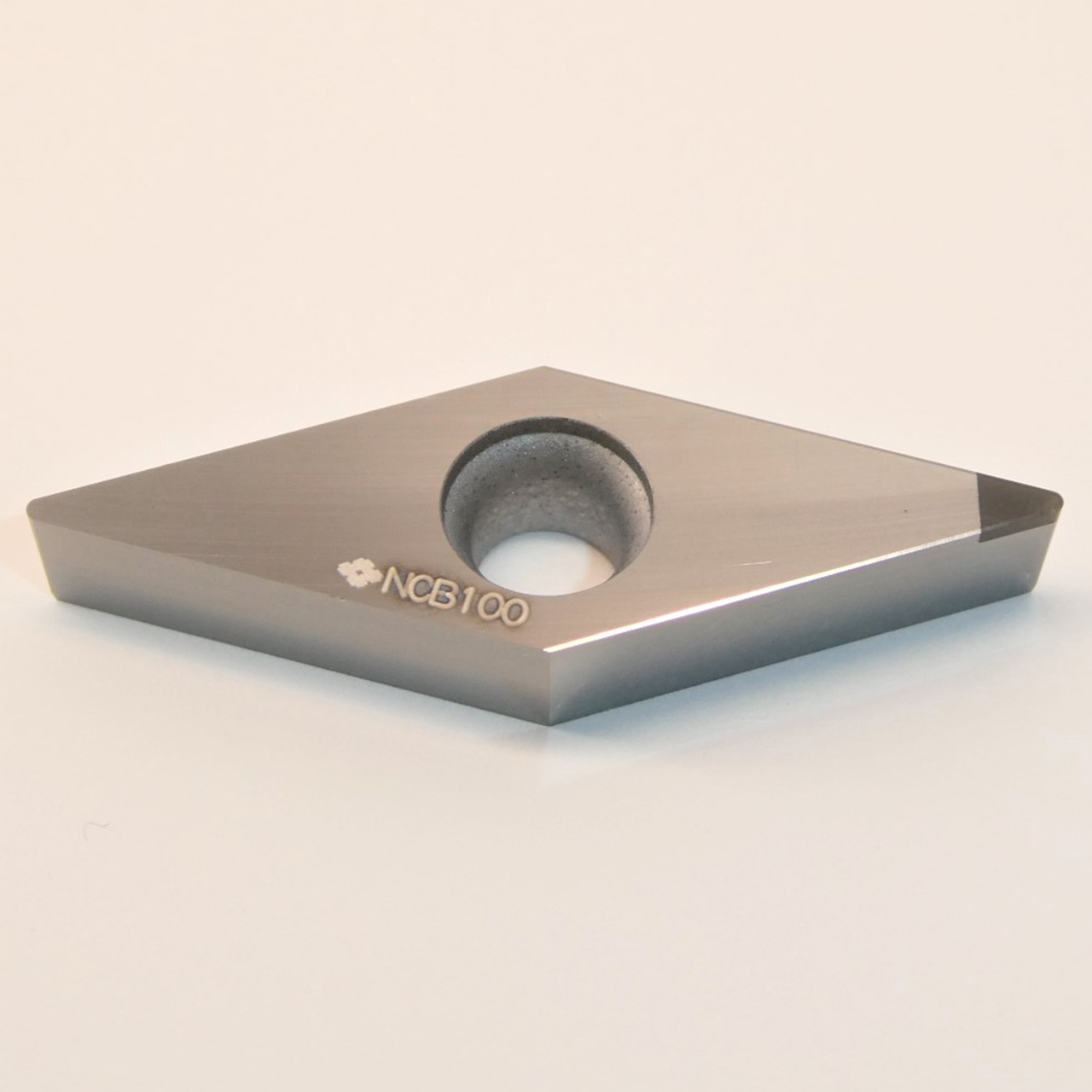

| EDP Number | 16P5FDT |
| Product Code-ANSI | NUVBGA332-NCB100 |
| Product Code-ISO | NU-VBGW160408 |
| Manufacturer Grade Identification | NCB100 |
| Series | NCB100 |
| Effective Length (Inch) | 0.0669" |
| Effective Length (mm) | 1.70mm |
| Nose Radius (Inch) | 0.0315" |
| Nose Radius (mm) | 0.80mm |
| Inscribed Circle Diameter (Inch) | 0.3750" |
| Inscribed Circle Diameter (mm) | 9.525mm |
| Hole Diameter (mm) | 4.40mm |
| Insert Thickness (Inch) | 0.1874" |
| Insert Thickness (mm) | 4.76mm |
| Insert Size | 332 |
| Corner Angle | 35 Degree |
| Relief Angle | 5 Degree |
| Rake Angle | Positive |
| Insert Material | CBN |
| Insert Style | VBGW |
| Tolerance Class | G |
| Coating | Uncoated Binderless CBN |
| Insert Holding Method | Pin & Clamp |
| Standard Designation of the Grade, Main Application | Exotic Alloy |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Sumitomo
Insert Style:
VBGW
Insert Size:
332
Material:
CBN
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.53mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1874"
Thickness (mm):
4.76mm
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0315"
Corner Radius (mm):
0.80mm
Manufacturer's Grade:
NCB100
interval quantity:
1
Ships:
From California in 1-2 Days
