Product Specifications
| EDP Number | 19P7BEL |

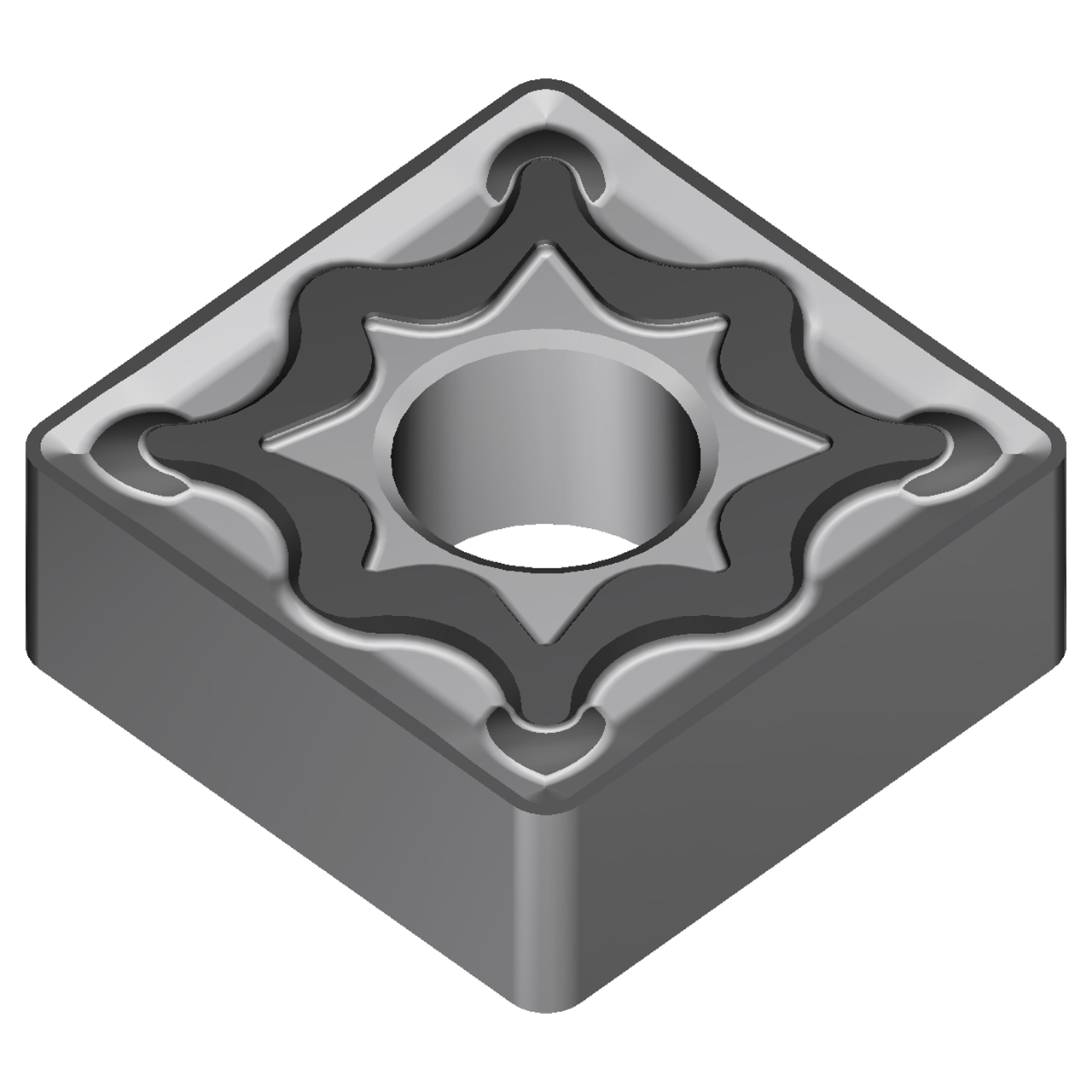

| Product Code-ANSI | SNMG644EUX-AC8025P |
| Product Code-ISO | SNMG190616N-UX |
| Manufacturer Grade Identification | AC8025P |
| Series | AC8000P |
| Cutting Edge Length (Decimal Inch) | 0.7500" |
| Cutting Edge Length (mm) | 19.05mm |
| Nose Radius (Decimal Inch) | 0.0630" |
| Nose Radius (mm) | 1.60mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.7500" |
| Inscribed Circle Diameter (mm) | 19.05mm |
| Hole Diameter (mm) | 7.94mm |
| Insert Thickness (Decimal Inch) | 0.2500" |
| Insert Thickness (mm) | 6.35mm |
| Relief Angle | 0 Degree |
| Rake Angle | Negative |
| Insert Material | Carbide |
| Tolerance Class | M |
| Chip Breaker | EUX |
| Corner Angle | 90 |
| Insert Style | SNMG |
| Primary Workpiece Material | Steel |
| Coating | Absotech |
| Coating Process | CVD |
| Standard Designation of the Grade, Main Application | P25, P30, P20 |
| Insert Holding Method | Pin & Clamp |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Sumitomo
Insert Style:
SNMG
Insert Size:
644
Material:
Carbide
Length (Inch):
3/4"
Length (Decimal Inch):
0.7500"
Length (mm):
19.05mm
Inscribed Circle (Inch):
3/4"
Inscribed Circle (Decimal Inch):
0.7500"
Inscribed Circle (mm):
19.05mm
Thickness (Inch):
1/4"
Thickness (Decimal Inch):
0.2500"
Thickness (mm):
6.35mm
Corner Radius (Inch):
1/16"
Corner Radius (Decimal Inch):
0.0630"
Corner Radius (mm):
1.60mm
Manufacturer's Grade:
AC8025P
interval quantity:
10
Ships:
From California in 1-2 Days
