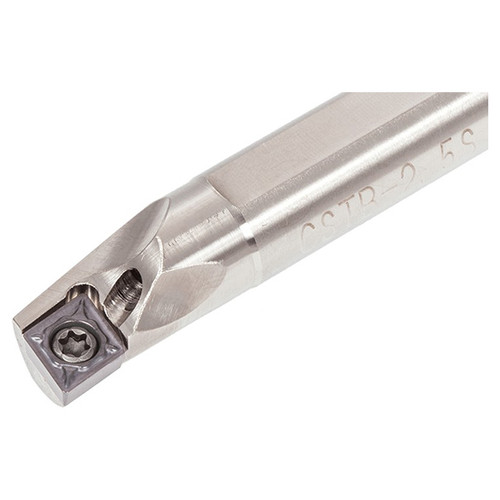

Screw-on boring bars, for position 80 degree rhombic insert with 7 degree clearance.
Product Specifications
| # MFG | 6856845 |
| Connection Diameter Machine Side (mm) | 16mm |
| Functional Length (mm) | 130mm |
| Functional Width (mm) | 9mm |
| Head Length (mm) | 32mm |
| Minimum Bore Diameter (mm) | 18mm |
| Shank Height (mm) | 15mm |
| Body Material | Carbide |
| Application | For 80 Degree Rhombic Insert, For Miniature Machining |
| Tool Type | Internal Indexable-Turn Tool |
| Rake Angle Axial (Degree) | 0 Degree |
| Rake Angle Radial (Degree) | -10 Degree |
