Product Specifications

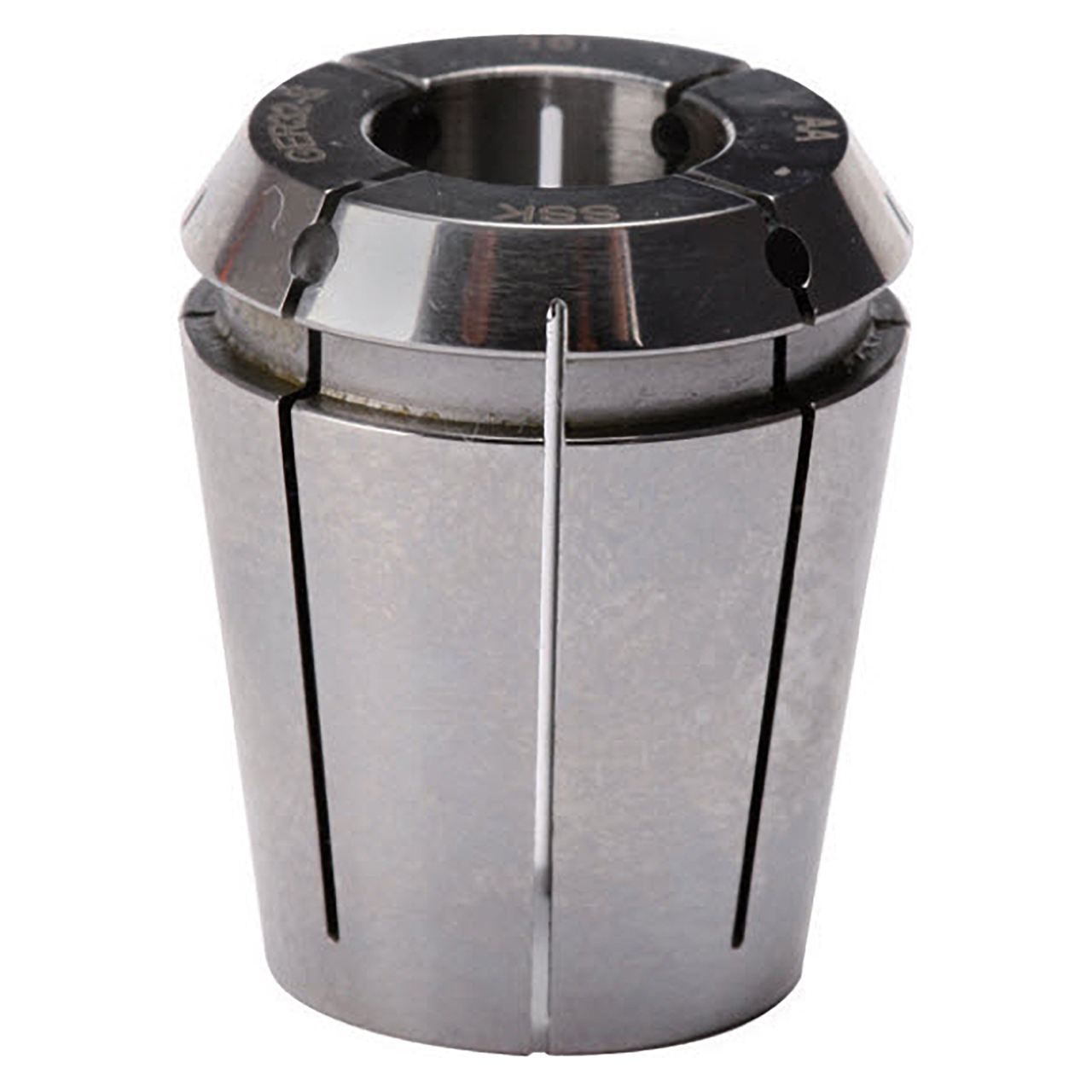

| EDP Number | 110316S |
| Shank Size (fractional) | 3/16" |
| Shank Size (Inch) | 0.1875" |
| Collapse Range (Inch) | 0.149-0.1875" |
| Diameter (Inch) | 0.4530" |
| Diameter (mm) | 11.50mm |
| Overall Length (Inch) | 0.7090" |
| Overall Length (mm) | 18.00mm |
| Clamping Length (Inch) | 0.7090" |
| Clamping Length (mm) | 18.00mm |
| Style | Single Angle |
| Series | ER11S |
| Type | Sealed Precision Spring Collet |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Type:
Sealed Precision Spring Collet
Collet Series:
ER11S
Size (Inch):
3/16"
Size (Decimal Inch):
0.1875"
Overall Length (Inch):
45/64"
Overall Length (mm):
18.00mm
Overall Length (Decimal Inch):
0.7090"
