Product Specifications
| EDP Number | 23281CC |
| Diameter (Decimal Inch) | 0.2500" |
| Diameter (Inch) | 1/4" |
| Diameter (mm) | 6.35mm |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Shank Diameter (Inch) | 1/4" |
| Shank Diameter (mm) | 6.35mm |
| Length of Cut (Decimal Inch) | 0.6250" |
| Length of Cut (Inch) | 5/8" |
| Length of Cut (mm) | 15.88mm |
| Overall Length (Decimal Inch) | 1.7500" |
| Overall Length (Inch) | 1-3/4" |
| Overall Length (mm) | 44.45mm |
| Series | E2161 |
| Shank Style | Flat |
| Helix Angle | 30 Degree |
| Number of Flutes | 3 |
| Coating | TiCN |
| Cut Type | Center Cutting |
| Cutting Direction | Right |

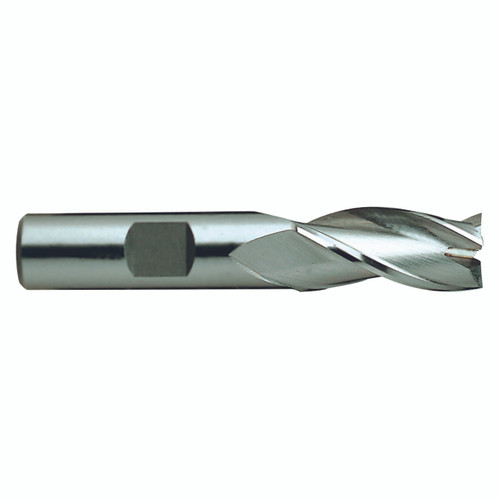

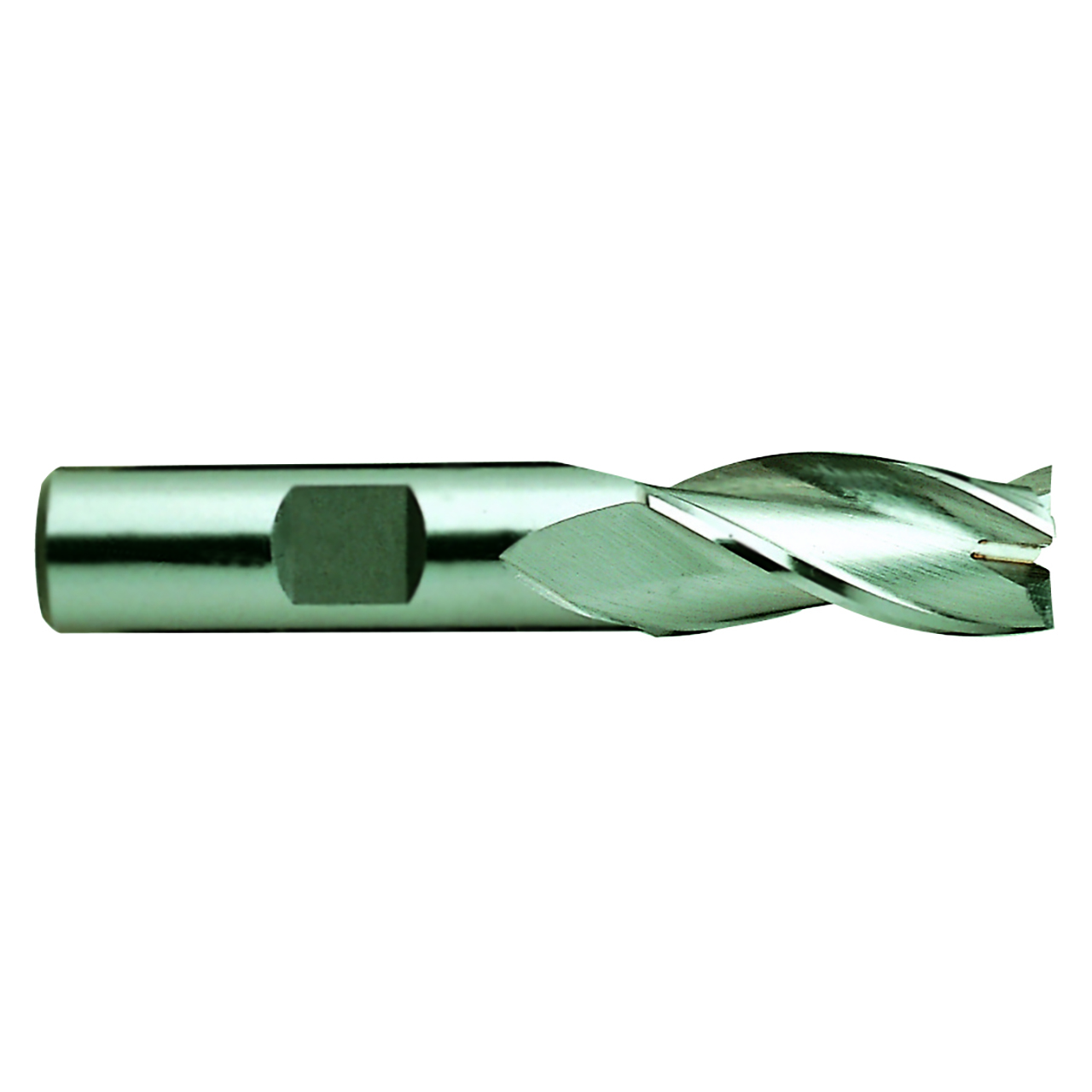

| Type | Square End Mill |
| Application | P |
| Material | HSSCo8 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Helix Angle:
30 Degree
Cutting Direction:
HSSCO8, 3 Flute Long Length Throw Away
interval quantity:
1
