Product Specifications
| # Manufacturer Number | D8723 |
| Diameter (Decimal Inch) | 0.7500" |
| Diameter (mm) | 19.05mm |
| Thread Size | 3/4" |
| Pitch | 16 TPI |
| Shank Diameter (Decimal Inch) | 0.5900" |
| Shank Diameter (mm) | 14.99mm |
| Overall Length (Decimal Inch) | 4.2500" |
| Overall Length (mm) | 107.95mm |
| Thread Length (Decimal Inch) | 0.5910" |
| Thread Length (mm) | 15.01mm |
| Square Length (Decimal Inch) | 0.6900" |
| Square Length (mm) | 17.53mm |
| Square Size (Decimal Inch) | 0.4420" |
| Square Size (mm) | 11.23mm |
| Neck Diameter (Decimal Inch) | 0.5770" |
| Neck Diameter (mm) | 14.66mm |
| Useable Length (Decimal Inch) | 2.4800" |
| Useable Length (mm) | 62.99mm |
| Drill Size (Decimal Inch) | 0.6932" |
| Drill Size (mm) | 17.61mm |
| Number of Flutes | 3 |
| Pitch Limit | H3 |
| Helix Angle (Degree) | 50 Degree |
| Coolant Through | No |
| Shank Type | Square |
| Finish / Coating | Hardslick |
| Material | HSSE-V3 |
| Chamfer Length | 2P-3P |
| Chamfer Type | Modified Bottoming |

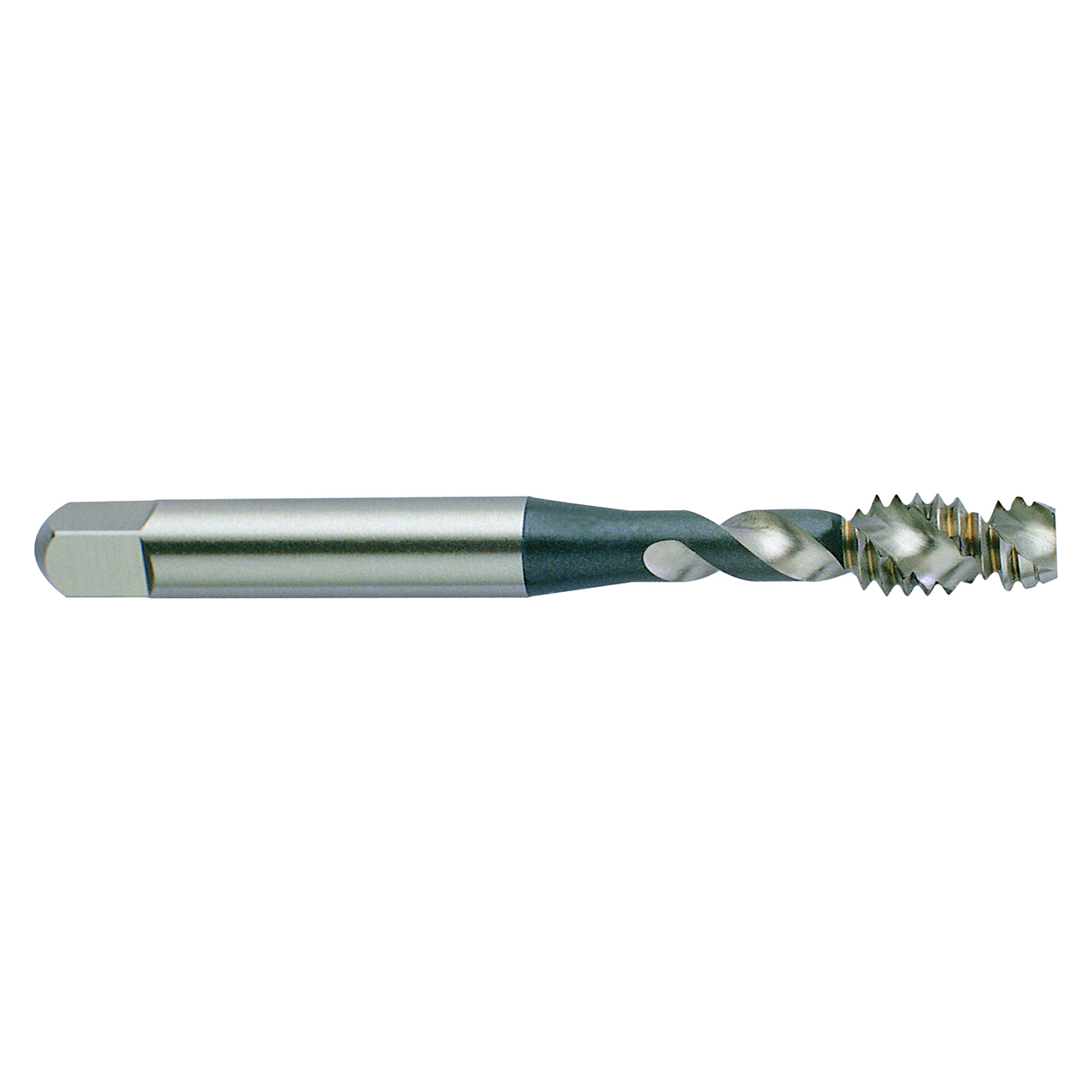

| Product Type | Spiral Flute Thread Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Thread Size (Inch):
3/4"
Thread Size (Decimal Inch):
0.7500"
Thread Size (mm):
19.05mm
Number of Flutes:
3
Material:
HSSE-V3
Finish/Coating:
Hardslick
Through Coolant:
No
Threads per Inch (TPI):
16 TPI
Overall Length (Decimal Inch):
4.2500"
Overall Length (mm):
107.95mm
