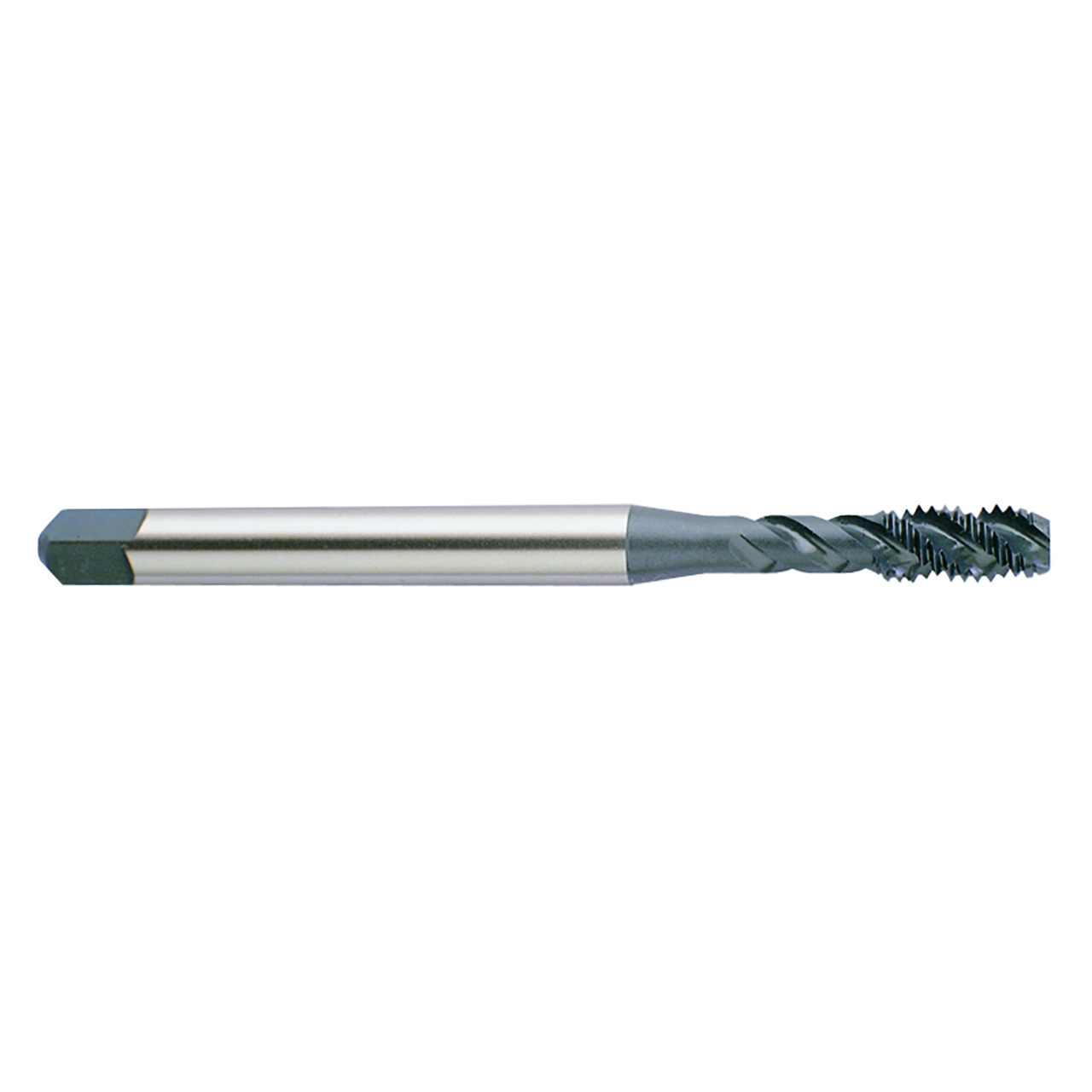

Product Specifications
| EDP Number | G2663 |
| Size & Pitch | 5/8-18 |
| Diameter (Decimal Inch) | 0.6250" |
| Diameter (mm) | 15.88mm |
| Overall Length (Decimal Inch) | 3.9370" |
| Length/Diameter | 2.5 x D |
| Coolant Through | No |
| Overall Length (mm) | 100.00mm |
| Thread Length (Decimal Inch) | 0.5100" |
| Thread Length (mm) | 13.00mm |
| Square Length (Decimal Inch) | 0.5600" |
| Square Length (mm) | 14.22mm |
| Shank Diameter (Decimal Inch) | 0.4800" |
| Shank Diameter (mm) | 12.19mm |
| Square Size (Decimal Inch) | 0.3600" |
| Square Size (mm) | 9.14mm |
| Neck Diameter (mm) | 11.91mm |
| Drill Size (Decimal Inch) | 0.5745" |
| Drill Size (mm) | 14.59mm |
| Useable Length (mm) | 56.01mm |
| Useable Length (Decimal Inch) | 2.2050" |
| Connection (Decimal Inch) | 0.48 x 0.36" |
| Connection (mm) | 12.19 x 9.14mm |
| Series | G2 |
| Chamfer Type | Modified Bottoming |
| Neck Diameter (Decimal Inch) | 0.4690" |
| Chamfer Length | 2P-3P |
| Thread Series | UNF |
| Pitch Limit | H3 |
| Blank Standard | DIN/ANSI |
| Helix Angle (Degree) | 45 Degree |
| Finish | Hardslick |
| Shank Type | Square |
| Trade Name | YG Tap GP |
| Tap Type | SPFL |
| Number of Flute | 4 |
| Material | HSS-V |
| Product Type | Spiral Flute Bottom Tap |
