Product Specifications
| EDP Number | S09402 |
| Diameter (Decimal Inch) | 1.9100" |
| Diameter (Inch) | 1-29/32" |
| Diameter (mm) | 48.42mm |
| Thickness (Decimal Inch) | 0.3125" |
| Thickness (Inch) | 5/16" |
| Thickness (mm) | 7.94mm |
| Insert Height (Decimal Inch) | 0.9370" |
| Insert Height (Inch) | 15/16" |
| Insert Height (mm) | 23.80mm |
| Series | S09 |
| Point Angle (Degree) | 132 Degree |
| Holder Type | Series 4 |
| Grade | T15 |
| Trade Name | YG Spade Drill Super Cobalt |
| Application | P,K |
| Coating | Hardslick |
| Material | Super Cobalt |

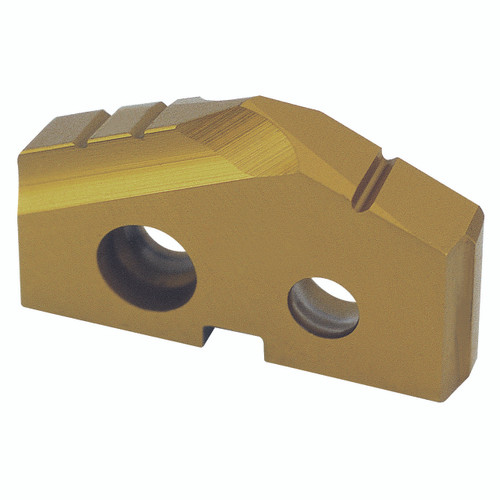

| Product Type | Spade Drill Insert |
