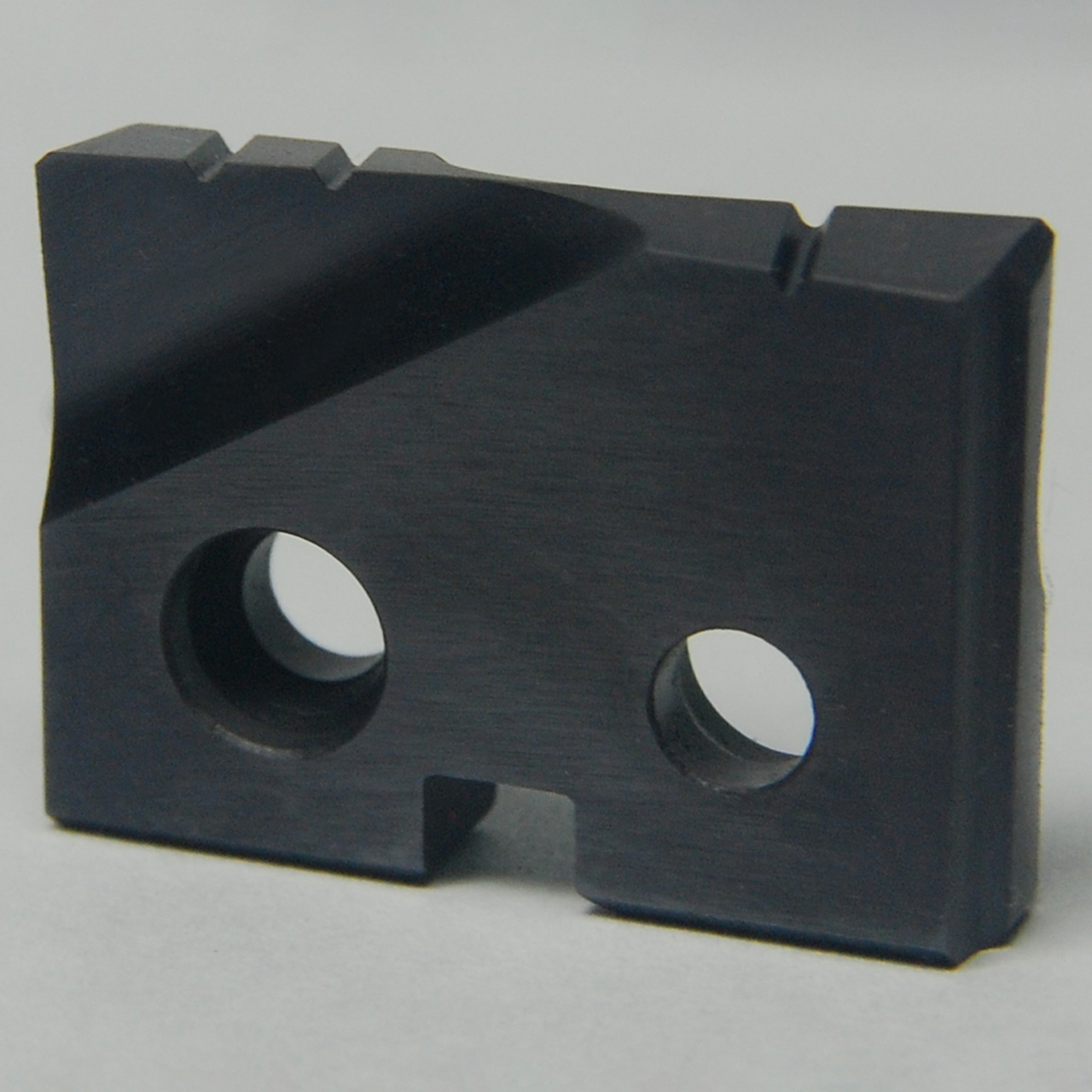

YG1 SF15026 | 0.4100" Diameter x 0.0938" Thickness 180 Degree Included Angle TiAlN Coated SF15 Series Flat Bottom Spade Drill Insert

$41.74
Brand:
YG1
Series:
SF15
Diameter (Inch):
0.4100"
Diameter (Decimal Inch):
13/32"
Diameter (mm):
10.32mm
Series Code/Seat Size:
Series Y
Material:
Super Cobalt
Finish/Coating:
TiAlN
Thickness (Inch):
3/32"
Thickness (Decimal Inch):
0.0938"
Thickness (mm):
2.38mm
Included Angle:
180 Degree
SKU:
23015282
Weight:
0.01 LBS
Shipping:
Calculated at Checkout

Product Specifications
EDP NumberSF15026
Diameter (Decimal Inch)0.4100"
Diameter (Inch)13/32"
Diameter (mm)10.32mm
Thickness (Decimal Inch)0.0938"
Thickness (Inch)3/32"
Thickness (mm)2.38mm
Insert Height (Decimal Inch)0.3610"
Insert Height (Inch)13/36"
Insert Height (mm)9.17mm
SeriesSF15
Point Angle (Degree)180 Degree
Holder TypeSeries Y
GradeT15
Trade NameYG Spade Drill SF Point Flat Bottom
ApplicationP,K
CoatingTiAlN
MaterialSuper Cobalt
Product TypeFlat Bottom Spade Drill Insert

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
YG1
Series:
SF15
Diameter (Inch):
0.4100"
Diameter (Decimal Inch):
13/32"
Diameter (mm):
10.32mm
Series Code/Seat Size:
Series Y
Material:
Super Cobalt
Finish/Coating:
TiAlN
Thickness (Inch):
3/32"
Thickness (Decimal Inch):
0.0938"
Thickness (mm):
2.38mm
Included Angle:
180 Degree
