Product Specifications
| EDP Number | SF15046 |
| Diameter (Decimal Inch) | 0.7200" |
| Diameter (Inch) | 23/32" |
| Diameter (mm) | 18.26mm |
| Thickness (Decimal Inch) | 0.1563" |
| Thickness (Inch) | 5/32" |
| Thickness (mm) | 3.97mm |
| Insert Height (Decimal Inch) | 0.5620" |
| Insert Height (Inch) | 9/16" |
| Insert Height (mm) | 14.27mm |
| Series | SF15 |
| Point Angle (Degree) | 180 Degree |
| Holder Type | Series 1 |
| Grade | T15 |
| Trade Name | YG Spade Drill SF Point Flat Bottom |
| Application | P,K |
| Coating | TiAlN |
| Material | Super Cobalt |

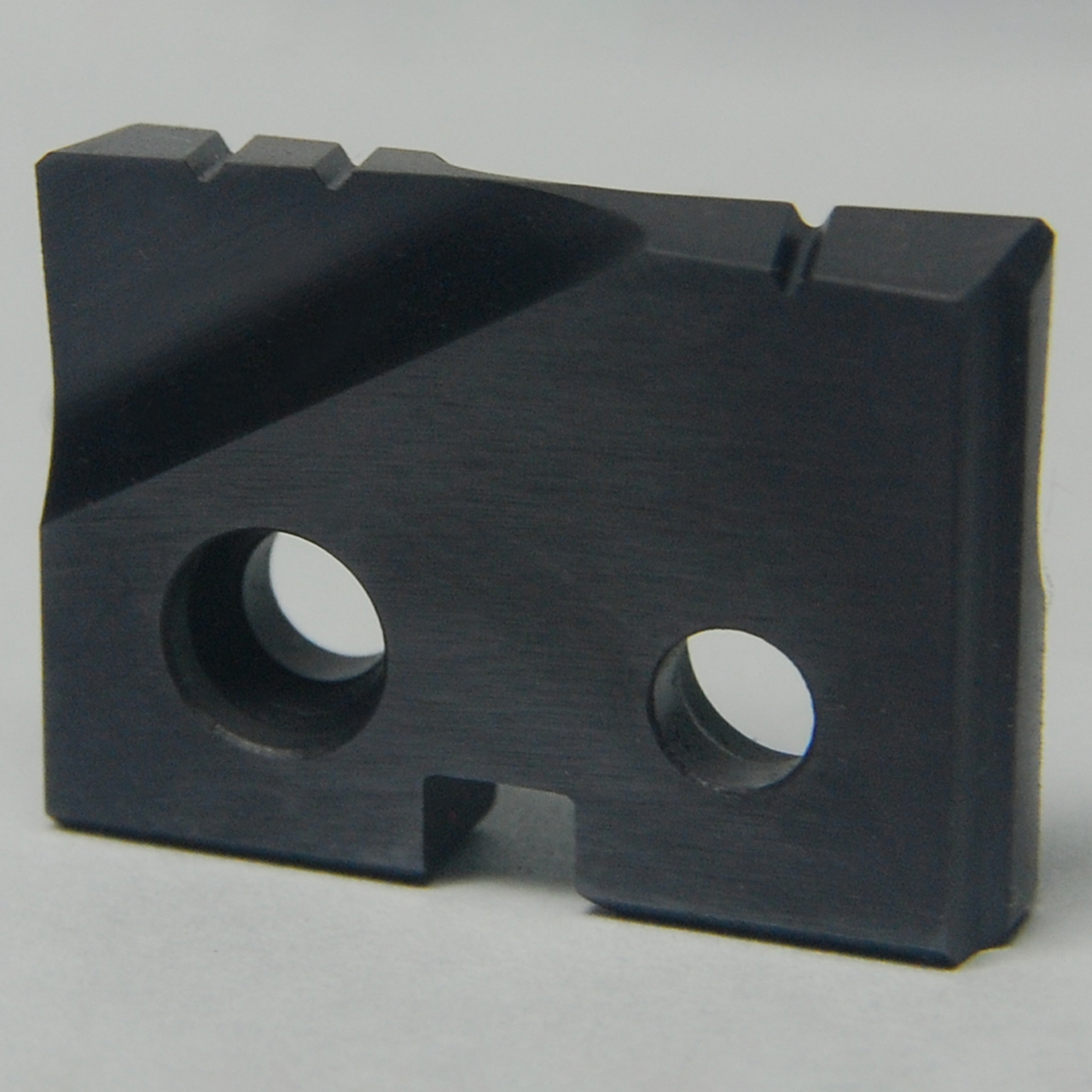

| Product Type | Flat Bottom Spade Drill Insert |
