Product Specifications
| EDP Number | SV120204 |
| Diameter (Decimal Inch) | 2.0600" |
| Diameter (Inch) | 2-1/16" |
| Diameter (mm) | 52.39mm |
| Thickness (Decimal Inch) | 0.3125" |
| Thickness (Inch) | 5/16" |
| Thickness (mm) | 7.90mm |
| Insert Height (Decimal Inch) | 0.9375" |
| Insert Height (Inch) | 15/16" |
| Insert Height (mm) | 23.80mm |
| Series | SV120 |
| Point Angle (Degree) | 132 Degree |
| Holder Type | 4 |
| Grade | T15 |
| Trade Name | SV Point |
| Application | P,K |
| Coating | Hardslick |
| Material | Super Cobalt |

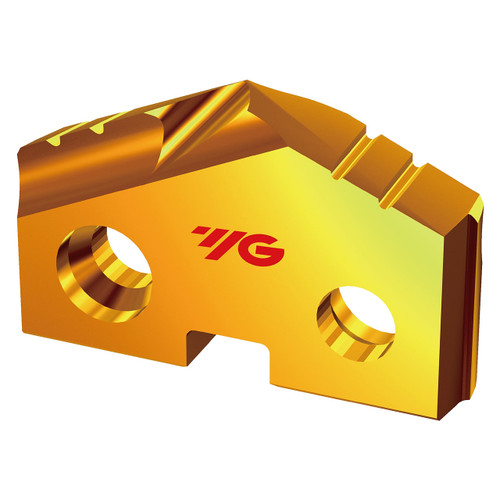

| Product Type | Spade Drill Insert |
