Product Specifications
| EDP Number | TR323 |
| Size | #10 |
| Pitch | 24 TPI |
| Diameter (Decimal Inch) | 0.1900" |
| Diameter (mm) | 4.83mm |
| Overall Length (Decimal Inch) | 2.3800" |
| Overall Length (mm) | 60.45mm |
| Thread Length (Decimal Inch) | 0.5310" |
| Thread Length (mm) | 13.49mm |
| Square Length (Decimal Inch) | 0.2500" |
| Square Length (mm) | 6.35mm |
| Shank Diameter (Decimal Inch) | 0.1940" |
| Shank Diameter (mm) | 4.93mm |
| Square Size (Decimal Inch) | 0.1520" |
| Square Size (mm) | 3.86mm |
| Neck Diameter (Decimal Inch) | 0.1310" |
| Neck Diameter (mm) | 3.33mm |
| Drill Size (Decimal Inch) | 0.1521" |
| Drill Size (mm) | 3.86mm |
| Useable Length (Decimal Inch) | 0.9060" |
| Useable Length (mm) | 23.01mm |
| Length/Diameter | 2.0xD |
| Number of Flutes | 4 |
| Pitch Limit | H3 |
| Chamfer Length | 2P-3P |
| Blank Standard | 302A |
| Series | TR |
| Thread Series | UNC |
| Coating | TiALN |
| Material | HSS-PM |
| Coolant Through | No |
| Trade Name | YG Tap Cast |
| Shank Type | Square |
| Tap Type | Straight Flute |
| Chamfer Type | Modified Bottoming |

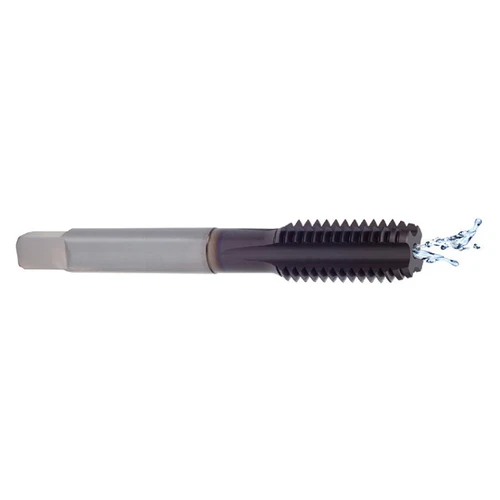

| Product Type | Straight Flute Modified Bottoming Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Tap Type:
Straight Flute
Thread Limit:
H3
Number of Flutes:
4
Chamfer:
2P-3P
Material:
HSS-PM
Finish/Coating:
TiALN
Through Coolant:
No
Thread Standard:
UNC
