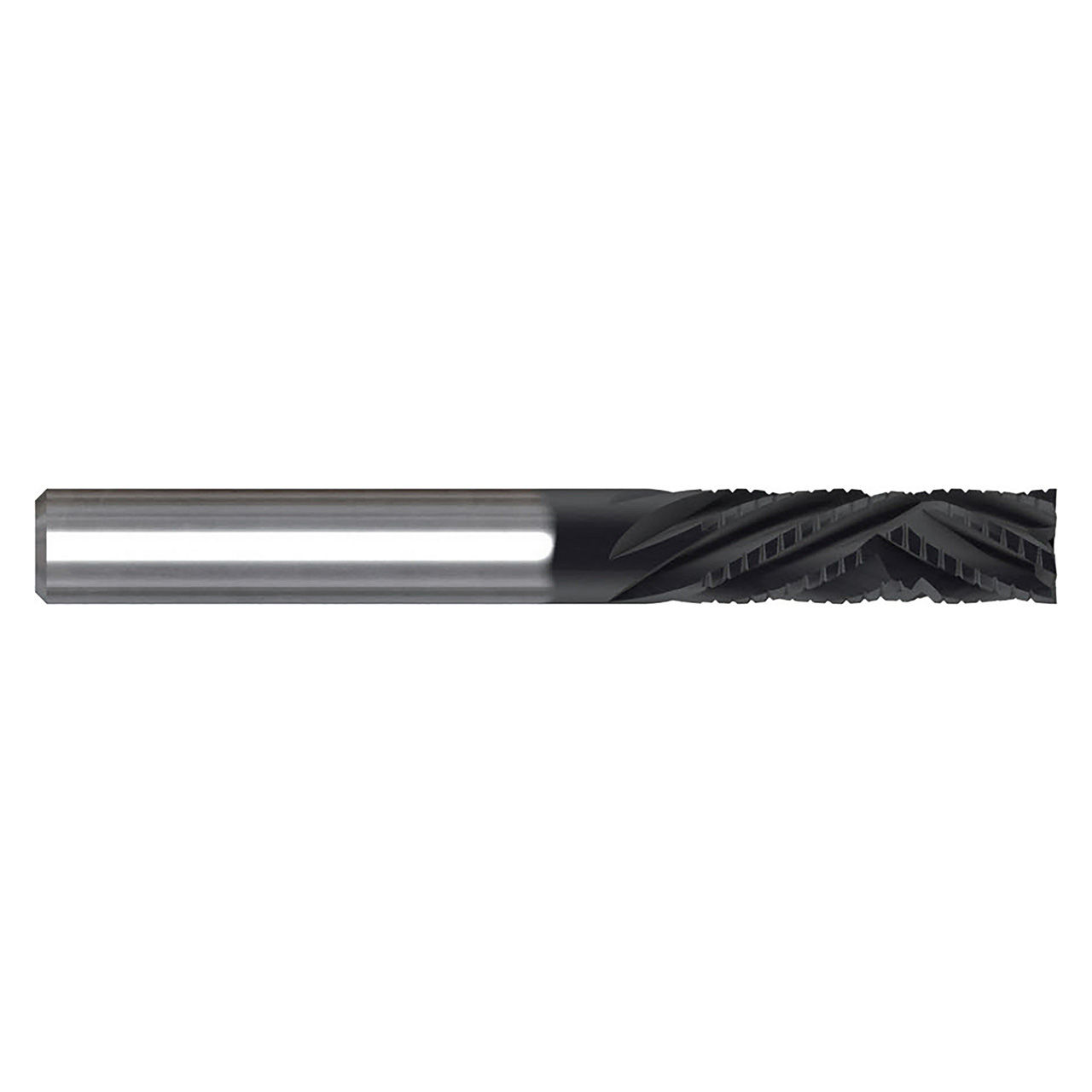

CFRP&GFRP compression routers for delamination-free cut YG-1 special CVD Coating for extended tool life and better abrasion resistance.
Product Specifications
| Manufacturer Part Number | URT5P1AO0500 |
| Mill Diameter (Inch) | 1/2" |
| Mill Diameter (Decimal Inch) | 0.5000" |
| Mill Diameter (mm) | 12.70mm |
| Shank Diameter (Inch) | 1/2" |
| Shank Diameter (Decimal Inch) | 0.5000" |
| Shank Diameter(mm) | 12.70mm |
| Length of Cut (Inch) | 1-1/2" |
| Length of Cut (Decimal Inch) | 1.5000" |
| Length of Cut (mm) | 38.10mm |
| Overall Length (Inch) | 4" |
| Overall Length (Decimal Inch) | 4.0000" |
| Overall Length (mm) | 101.60mm |
| Number of Flutes | 6 |
| Series | URT5P1AO |
| Helix Angle | 30 Degree |
| Material | Micro Grain Carbide |
| Coating | Diamond |
| Shank Type | Plain |
| Application | CFRP,GFRP |
| Machine | CNC Gantry,Robot End-Effectors |
| Operation | Milling |
| End Type | With Chipbreaker |
