Product Specifications

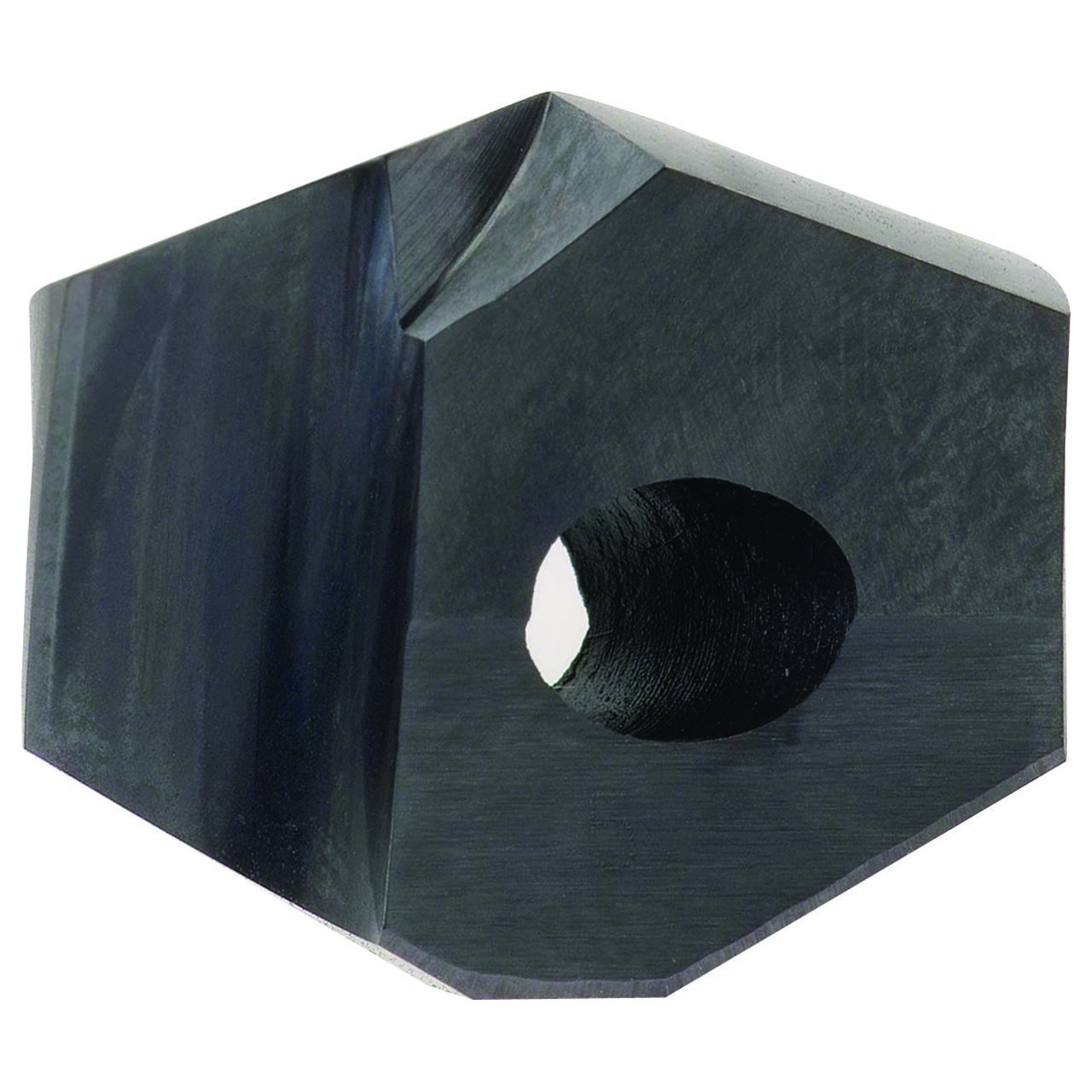

| # Manufacturer Number | Y03G02 |
| Diameter (Decimal Inch) | 0.9531" |
| Diameter (Inch) | 61/64" |
| Diameter (mm) | 24.21mm |
| Thickness (Decimal Inch) | 0.2559" |
| Thickness (Inch) | 11/43" |
| Thickness (mm) | 6.50mm |
| Insert Height (Decimal Inch) | 0.7320" |
| Insert Height (Inch) | 52/71" |
| Insert Height (mm) | 0.70mm |
| Point Length (Decimal Inch) | 0.1735" |
| Point Length (mm) | 4.40mm |
| Point Angle (Degree) | 140 Degree |
| Holder Type | G |
| Coating | TiAIN |
| Material | Carbide |
| Application | P,K |
| Product Type | Dream Drill Insert |
