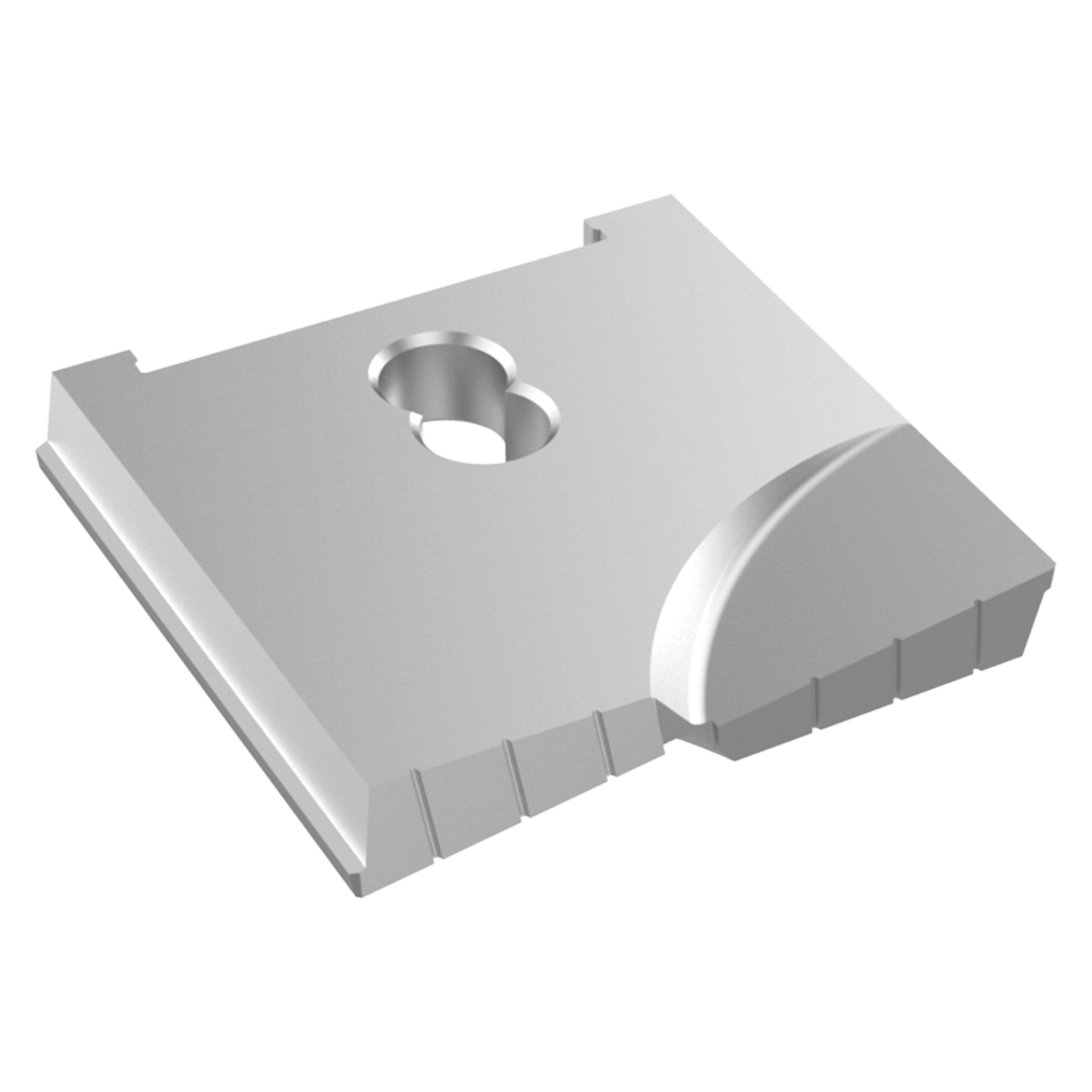

Universal style spade drills and universal holders allow end-users a larger diameter range. The diameter size for the universal spade drill ranges from 1" to 8-1/2". Tool life is improved when coated with TiN, TiCN, and TiAlN.
Features:
- Universal inserts fit into universal holders and accommodate a wide range of diameters
- 3 Geometries: 130 Degree for standard drilling, 90 Degree spot/chamfer, and flat bottom
Product Specifications
| # MFG | 10434-0126 |
| Diameter (Inch) | 1-13/16" |
| Diameter (Decimal Inch) | 1.8125" |
| Diameter (mm) | 46.04mm |
| Locating Area (Inch) | 1-1/4" |
| Thickness (Inch) | 5/16" |
| Tool Reference Length (Inch) | 2" |
| Series | C |
| Coating | Uncoated |
| Grade | High Speed Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Series:
C
Thickness (Decimal Inch):
0.3100"
Thickness (mm):
7.94mm
interval quantity:
1
