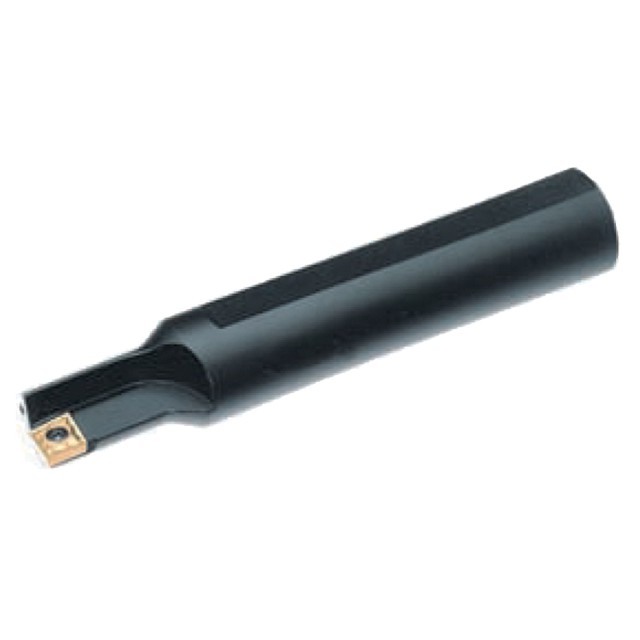

EcoCut can perform up to four operations with one tool. The EcoCut tool can be used for drilling, boring applications, facing operations and standard turning operations.
Features:
- Realize less programming, lower stock inventory, shorter set-up & cycle times and outstanding performance
Product Specifications
| # MFG | 11065077 |
| Cutting Width (Inch) | 0.315" |
| Length of Cut (Inch) | 0.94" |
| Length Type | 1.5XD |
| Minimum Diameter (Inch) | 0.630" |
| Overall Length (Inch) | 4.92" |
| Shank Diameter (Inch) | 0.750" |
| Thread Size | 16-15/64" |
| Series | EC 16 |
| Shank Type | Lathe |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Drill Style:
EC 16
Drill Diameter (Inch):
5/8"
Drill Diameter (Decimal Inch):
0.6300"
Drill Diameter (mm):
16.00mm
Maximum Drill Depth (Inch):
15/16"
Maximum Drill Depth (Decimal Inch):
0.9400"
Maximum Drill Depth (mm):
23.88mm
Shank Type:
Lathe
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
Drill Depth by Diameter Ratio:
1.5 x D
