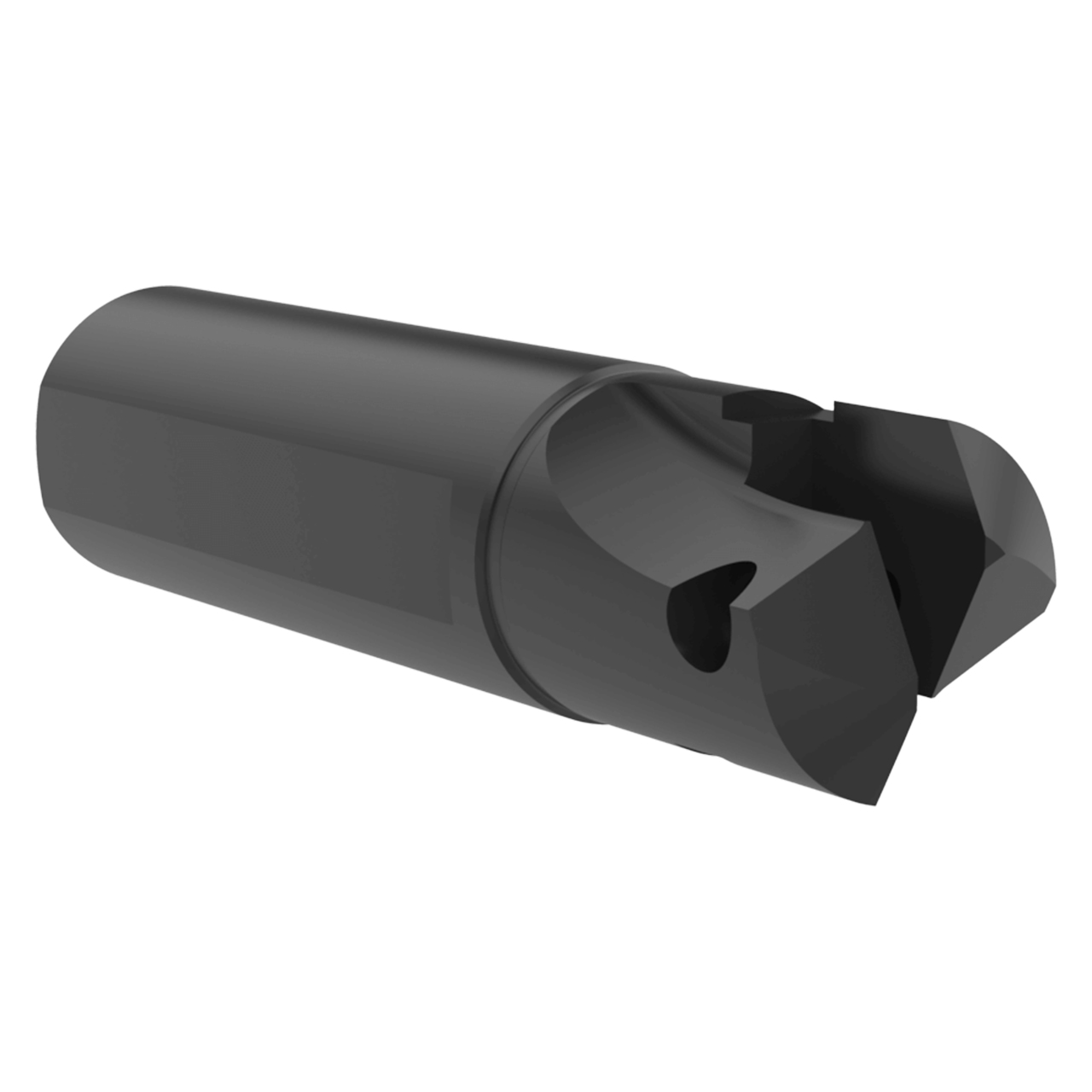

HP spade drills and Universal spade drills fit into the Universal holders.
Features:
- Universal style holders accommodate a wide range of diameters that are available in the HP and Universal insert lines
Product Specifications
| # MFG | 20251-2000 |
| Flute Length (Inch) | 2-1/2" |
| HP Reference Length (Inch) | 3-1/32" |
| Overall Length (Inch) | 6-1/2" |
| Shank length (Inch) | 4" |
| Maximum Diameter (Inch) | 3-3/8" |
| Minimum Diameter (Inch) | 2-1/2" |
| Shank Diameter (Inch) | 2" |
| Series | E |
| Shank Type | Lathe |
| Flute Type | Straight |
| Length Type | Stub |
| Deep Hole | No |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Series:
E
Minimum Drill Diameter (Inch):
2-1/2"
Minimum Drill Diameter (Decimal Inch):
2.5000"
Minimum Drill Diameter (mm):
63.5mm
Maximum Drill Diameter (Inch):
3-3/8"
Maximum Drill Diameter (Decimal Inch):
3.3800"
Maximum Drill Diameter (mm):
85.73mm
Shank Type:
Lathe
Overall Length (Inch):
6-1/2"
Overall Length (Decimal Inch):
6.5000"
Overall Length (mm):
165.10mm
Flute Type:
Straight
interval quantity:
1
