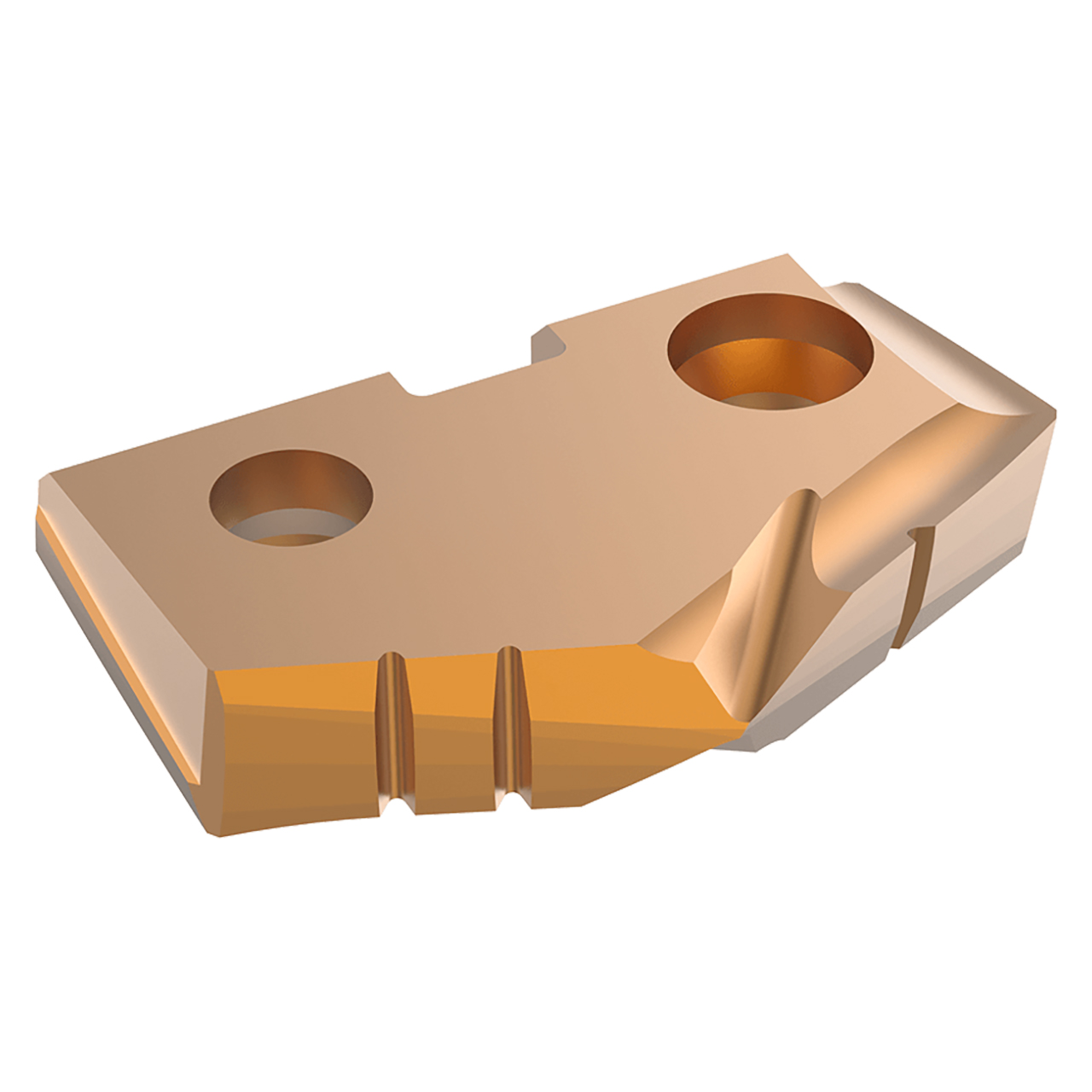

Allied Machine and Engineering 4C22P-1.015-HE | 1.016" Diameter x 0.188" Thickness 132 Degree Included Angle AM300 Coated C1(K35) 2 Series Spade Drill Insert

$93.34 $86.57
(You save $6.77)
interval quantity:
2
SKU:
23032724
Weight:
0.03 LBS
Minimum Purchase:
2 units
Shipping:
Free Shipping

GEN2 T-A drill inserts provide lower drilling forces, increased drill stability, smoother breakout on through-hole and allows for improved chip formation.

Features:

  • Notch Point geometry improves stability, hole straightness, and reduces thrust
  • Web Thin reduces thrust and increases point strength, allowing greater reliability
  • Helical Margin increases drill stability
  • Helical Flute improves tool life
    •
    Product Specifications
    # MFG4C22P-1.015-HE
    Diameter (Inch)1.0156"
    Diameter Fractional Equivalent1-1/64"
    Diameter (mm)25.8mm
    Thickness (Inch)0.1875"
    Included Angle (Degree)132 Degree
    Series2
    GeometryHigh Efficiency
    MaterialC1(K35)
    CoatingAM300
