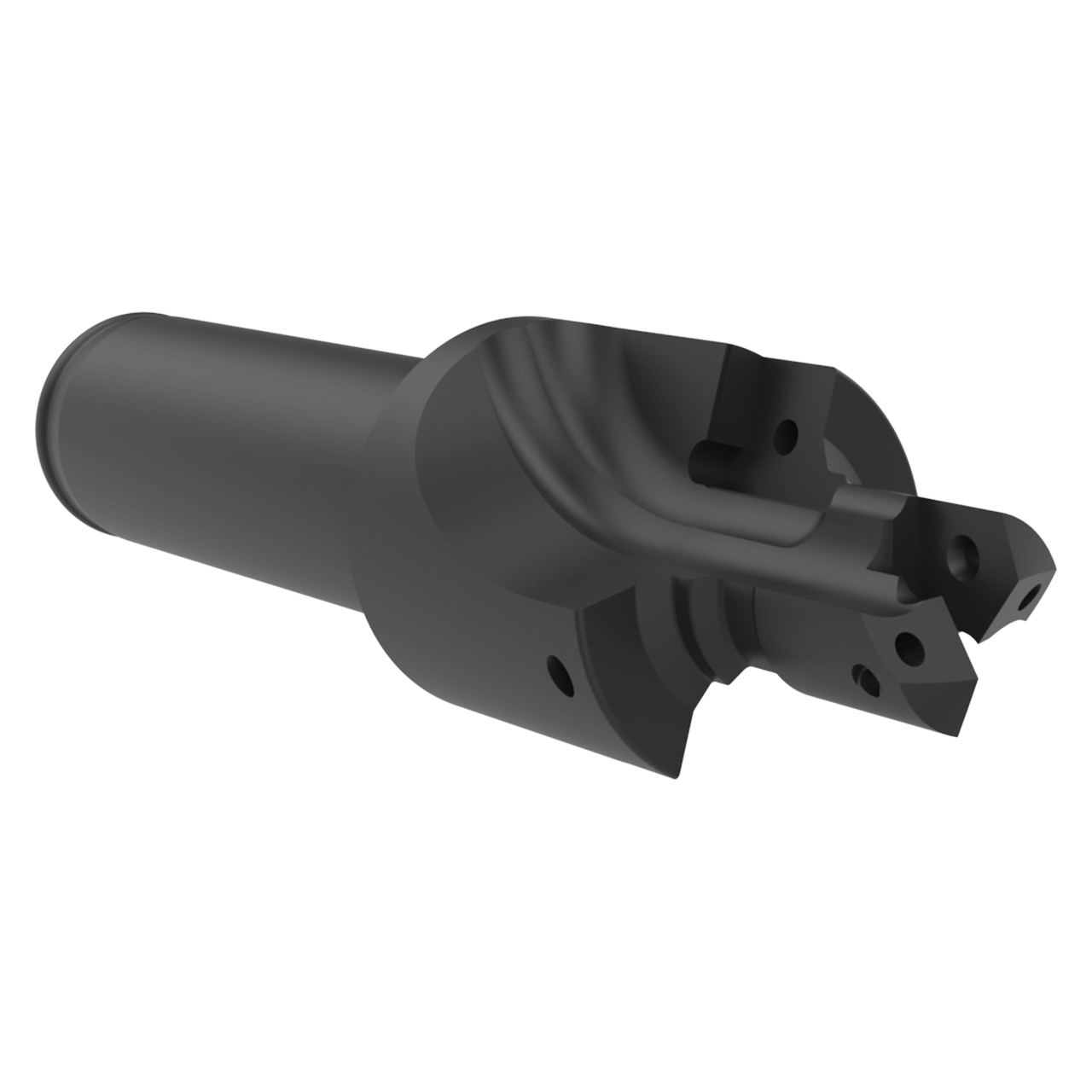

Single Operation Port Hole Drilling Solutions. Allied's revolutionary port hole drilling system combines two manufacturing functions. The patent-pending design provides excellent repeatability and surface finish while eliminating lost production time due.
Features:
- Produced to strict manufacturing tolerances
- Drill and finish forms port in one operation
Product Specifications
| # MFG | AS5202-05Z-063F |
| Pilot Diameter (Inch) | 0.453" |
| Pilot Diameter (mm) | 11.5mm |
| Spotface Diameter (Inch) | 0.916" |
| Spotface Diameter (mm) | 23.27mm |
| Shank Diameter (Inch) | 0.625" |
| Shank Diameter (mm) | 15.88mm |
| Seal Angle Diameter (Inch) | 0.625" |
| Seal Angle Diameter (mm) | 15.88mm |
| Overall Length (Inch) | 3.51" |
| Overall Length (mm) | 89.2mm |
| Pilot Length (Inch) | 1.875" |
| Pilot Length (mm) | 47.63mm |
| Shank Length (Inch) | 0.882" |
| Shank Length (mm) | 22.39mm |
| Seal Angle | 60 Degree |
| Spotface to Shoulder Length (mm) | 22.39mm |
| Seal Angle | 60 Degree |
| Series | Z |
| Tube Size | -5 |
| Port Standard | SAE AS5202 |
| Port Thread Size | 1/2-20 UNJF-3B |
| Shank Type | Cylindrical |
| Pipe Tap Rear (Inch) | 1/16" |
