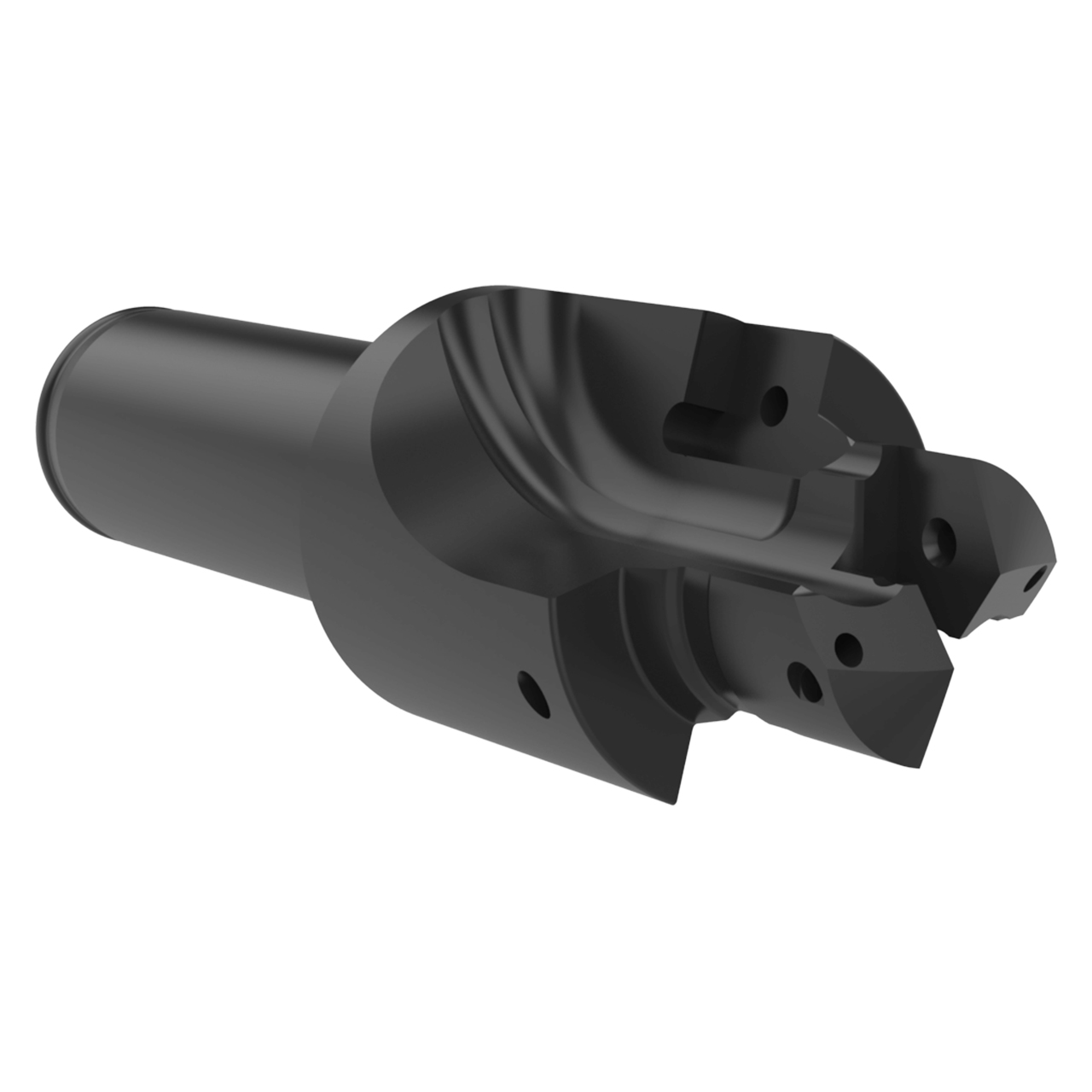

Single Operation Port Hole Drilling Solutions. Allied's revolutionary port hole drilling system combines two manufacturing functions. The patent-pending design provides excellent repeatability and surface finish while eliminating lost production time due.
Features:
- Produced to strict manufacturing tolerances
- Drill and finish forms port in one operation
Product Specifications
| # MFG | J1926-080-20FM |
| Pilot Diameter (Inch) | 0.689" |
| Pilot Diameter (mm) | 17.5mm |
| Spotface Diameter (Inch) | 1.206" |
| Spotface Diameter (mm) | 30.6mm |
| Shank Diameter (Inch) | 0.787" |
| Shank Diameter (mm) | 20mm |
| Seal Angle Diameter (Inch) | 0.813" |
| Seal Angle Diameter (mm) | 20.7mm |
| Overall Length (Inch) | 3.63" |
| Overall Length (mm) | 92.3mm |
| Seal Angle Length (Inch) | 0.106" |
| Seal Angle Length (mm) | 3.5mm |
| Pilot Length (Inch) | 0.689" |
| Pilot Length (mm) | 17.5mm |
| Shank Length (Inch) | 1.65" |
| Shank Length (mm) | 41.9mm |
| Spotface to Shoulder Length (Inch) | 1.15" |
| Spotface to Shoulder Length (mm) | 29.2mm |
| Seal Angle | 15 Degree |
| Series | 0.5 |
| Tube Size | -8 |
| Port Standard | SAE J-1926 |
| Port Thread Size | 3/4-16 UNF-2B |
| Shank Type | Cylindrical |
