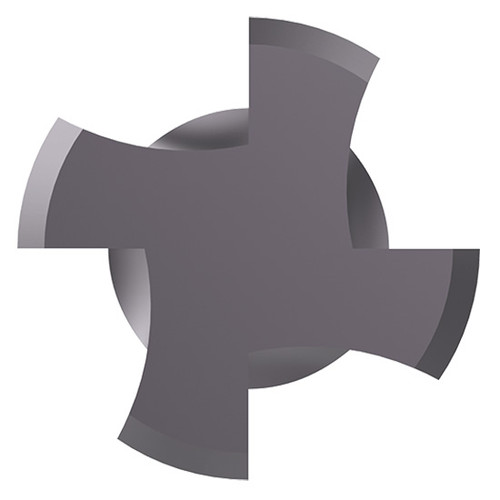

The threadmill range is manufactured from solid carbide with ground helical flutes and a TiAlN coating as standard. These products have been designed for the low volume/low cost production environment, providing excellent performance at a competitive price.
Features:
- Full product offering of UN,NPT,NPTF, and METRIC tools
- TiAlN coated for increased tool life over uncoated tools
- Extensive range of thread forms
- Coolant through
- Thread Per Inch : 40
- Thread Form : UN
Product Specifications
| #MFG | TM12540M |
| Thread Size (Inch) | #4 |
| Cutter Diameter (Inch) | 3/32" |
| Cutter Diameter (Decimal Inch) | 0.0866" |
| Cutter Diameter (mm) | 2.20mm |
| Pitch (Inch) | 1-37/64" |
| Pitch (Decimal Inch) | 1.5700" |
| Pitch (mm) | 40.00mm |
| Shank Diameter (Inch) | 1/8" |
| Shank Diameter (Decimal Inch) | 0.1181" |
| Shank Diameter (mm) | 3.00mm |
| Length of Cut (Inch) | 11/64" |
| Length of Cut (Decimal Inch) | 0.1752" |
| Length of Cut (mm) | 4.450mm |
| Number of Flutes | 3 |
| Thread Type | Internal/External |
| Finish/Coating | TiAlN |
| Material | Carbide |
