Product Information

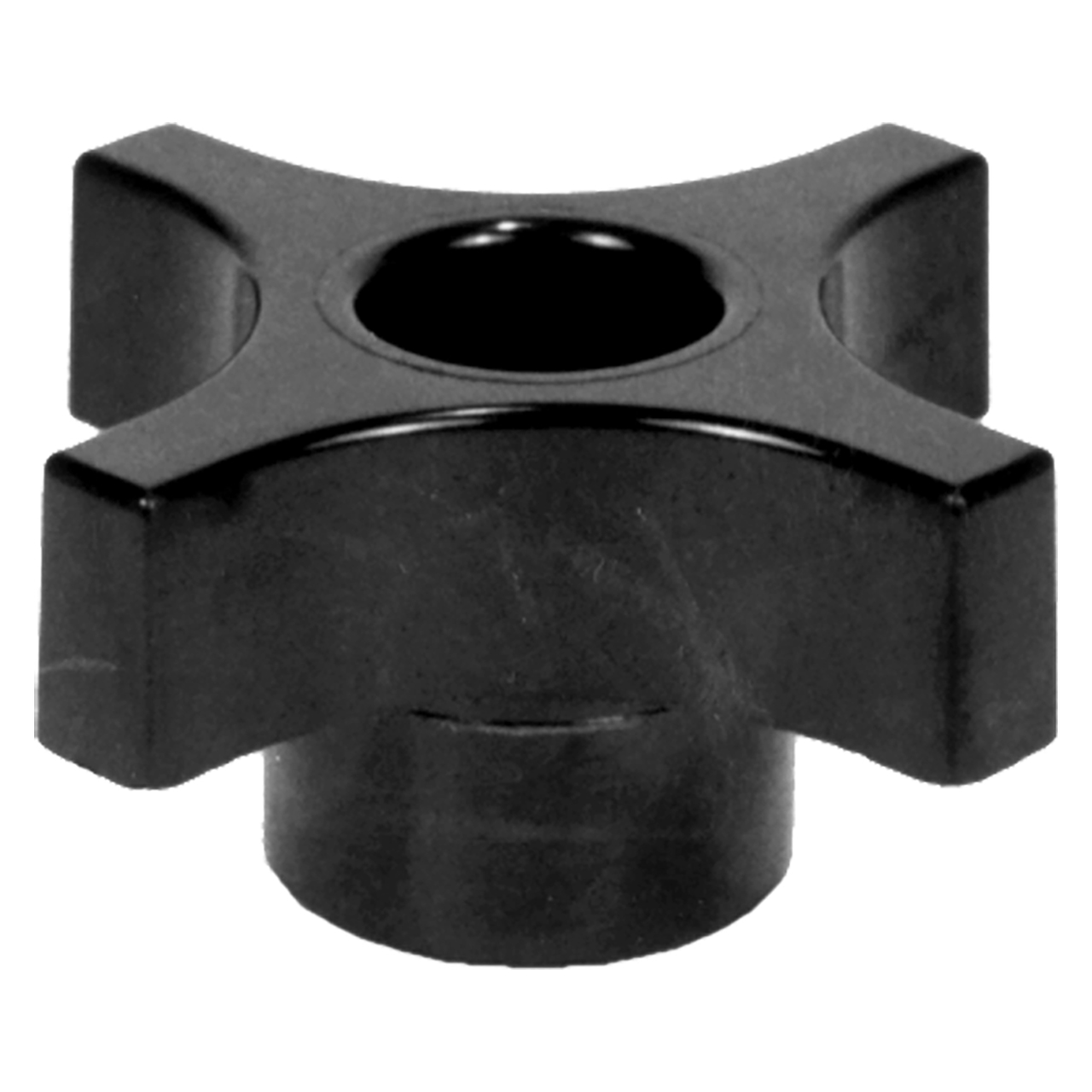

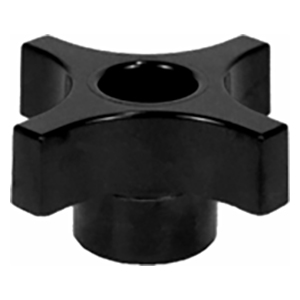

Easy-grip phenolic knob. Four-prong design provides a firm grip for applications requiring quick tightening and high torque. Molded-in brass insert provides superior thread strength. Choice of three knob sizes, with tapped-hole sizes from #10-32 to 1/2-13. Non-standard thread sizes, reamed holes, or other lengths of molded-in studs are available in quantities of 500 and above. Made in USA.
Available Sizes
5/16-183/8-161/2-13 1/4-205/16-183/8-16 #10-24#10-321/4-20
Material
| ITEM | MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Four-Prong Knobs – Tapped Though Hole (Phenolic) | Black phenolic plastic (glossy smooth finish, extremely hard, electrical insulator, operating temperatures to 300 Degree, resistant to oils and most common chemicals) | - | Molded-in Brass | ✔ | ✔ |
Parts Specification

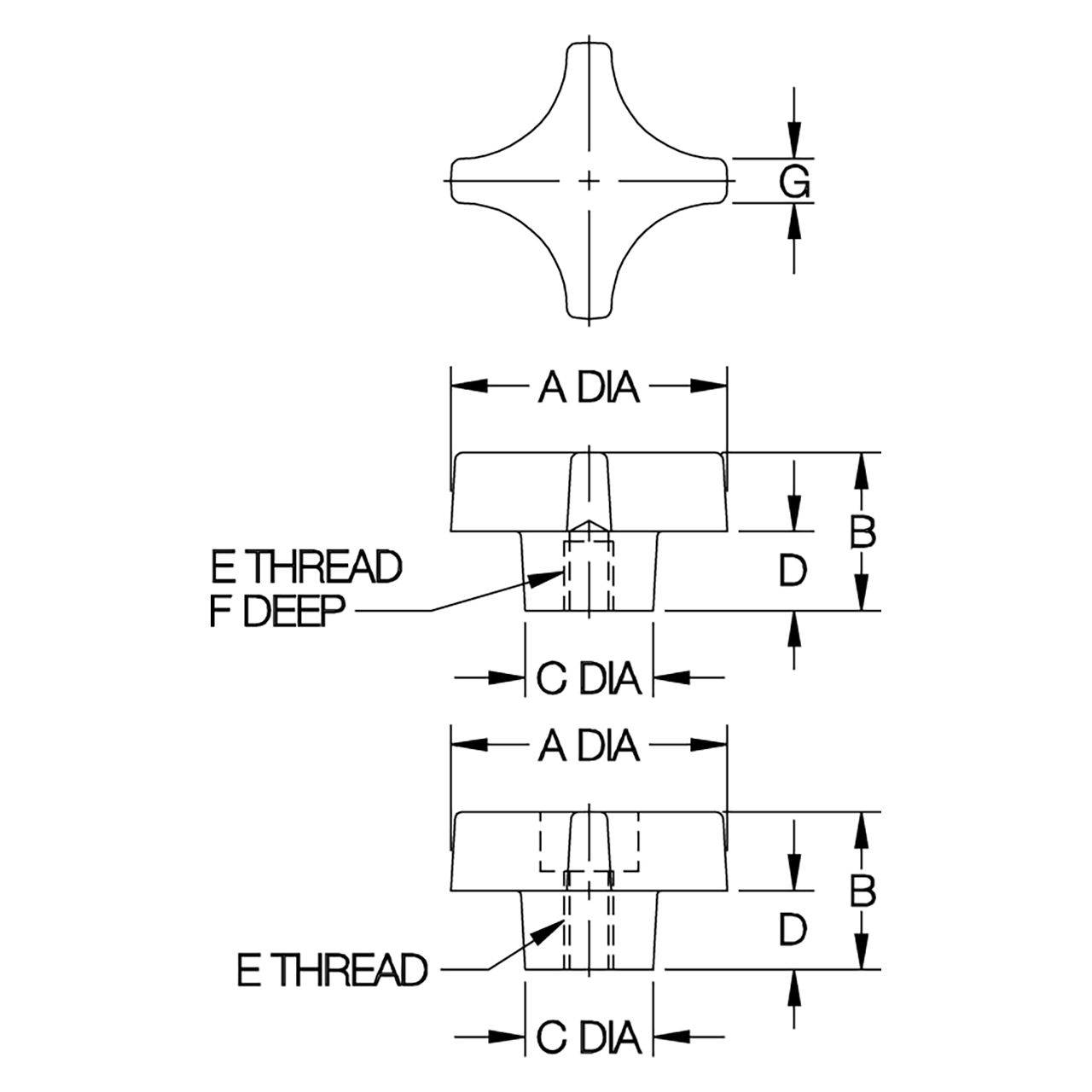

| Part Number | A | B | C DIA | D | E THREAD | F THREAD LENGTH | G |
| CL-2-PPK-2-PACKOF2 | 1-3/4 | 1 | 13/16 | 1/2 | 5/16-18 | 5/8 | 9/32 |
