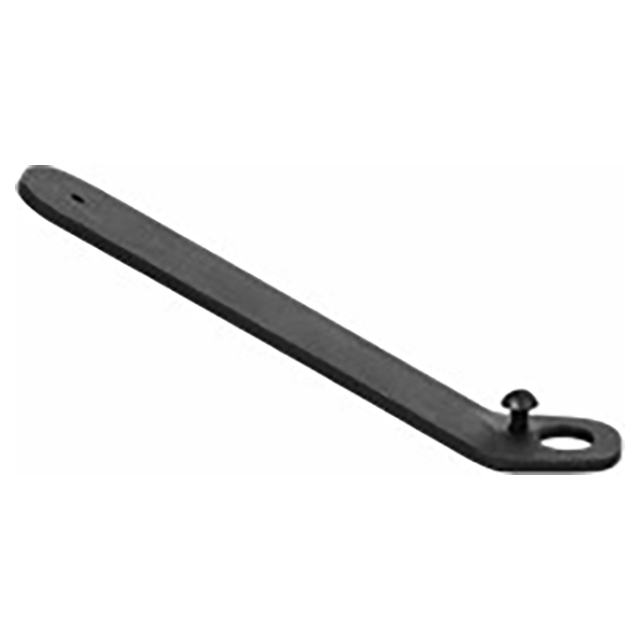

Permanent Bushing Handles
are designed for one-time installation of a size OD 5/16-1/2" Slip/Fixed Bushing directly into the steel handle, where it is fastened with a tamper-resistant one-way screw to create a permanent assembly. The permanent bushings handle also has a tapped hole for accurate drilling without the need for a rigid fixture. Carr Lane Permanent handle bushings are lightweight and have a functional design that facilitates efficient drilling in difficult to reach applications. Permanent bushing handles manufactured by Carr Lane are proudly made in the USA.
Material
Item | Material | Heat Treat | Finish | DFARS | RoHS |
Handle | Mild Steel | - | Black Oxide | ✔ | ✔ |
Look Screw | Mild Steel | - | Black Oxide | ✔ | ✔ |
Parts Specification
For Sf Bushing Od Size (Inch) | A Diameter (Inch) | B (Inch) | C (Inch) | D (Inch) |
5/16" | 0.313" | 0.383" | 1" | 1.12" |
