Product Information

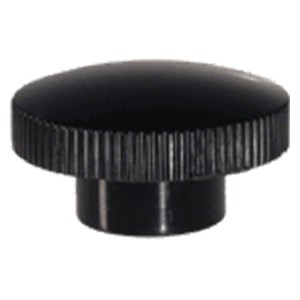

Small, easy-grip phenolic knob. Knurled head provides a positive grip for finger tightening in light clamping applications. Molded-in brass insert provides superior thread strength. Choice of five knob sizes, with tapped-hole sizes from #10-32 to 3/8-16 (M5 to M10 in metric). Non-standard thread sizes, reamed holes, or other lengths of molded-in studs are available in quantities of 500 and above. Made in USA.

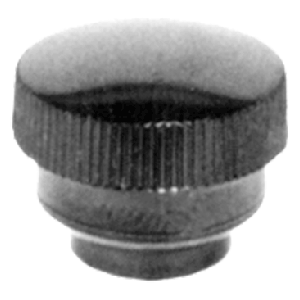

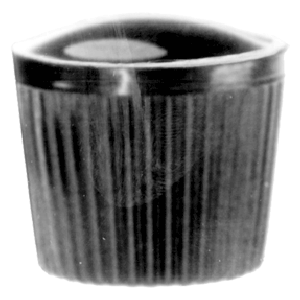

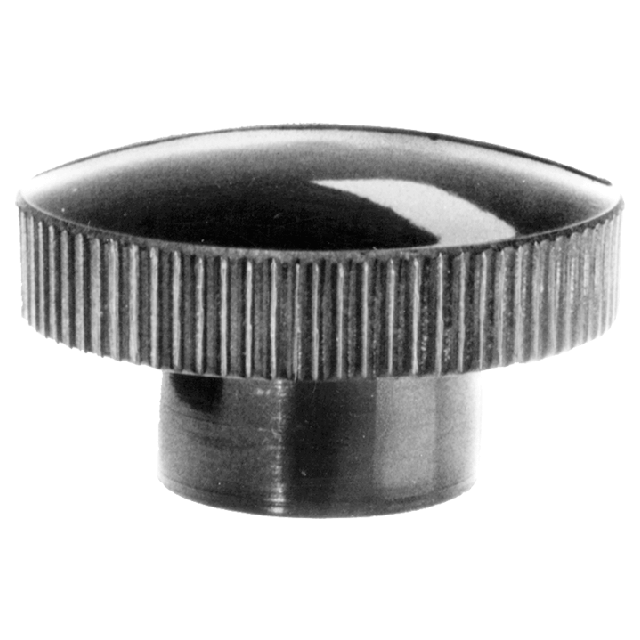

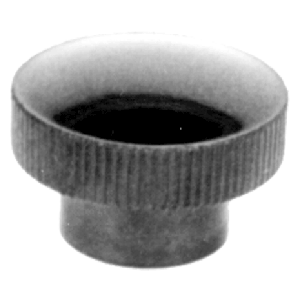

Available Sizes
5/16-183/8-16M8M10 1/4-205/16-18M6M8 #10-321/4-20M5M6 #10-321/4-20M5 #10-32
Material
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Black phenolic plastic (glossy smooth finish, extremely hard, electrical insulator, operating temperatures to 300 Degree, resistant to oils and most common chemicals) | - | Molded-in Brass insert (or mild steel stud, zinc plated clear chromate) | ✔ | ✔ |
Parts Specification

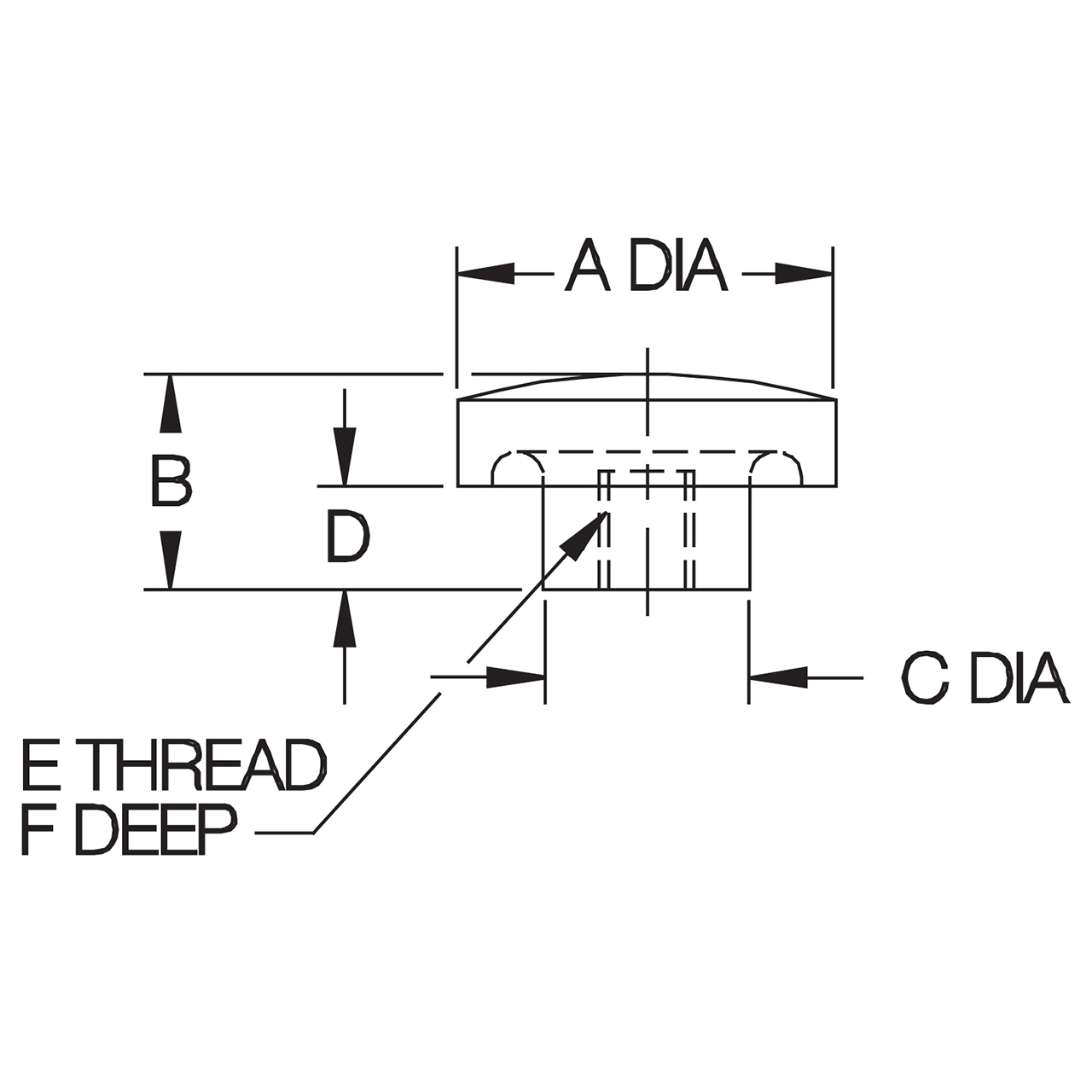

| Part Number | A DIA | B | C DIA | D | E THREAD | F |
| CL-324-KTK-PACKOF2 | 3/4 | 19/32 | 7/16 | 5/16 | #10-32 | 5/16 |
