Product Information
Comfortable-grip ball knob that is ideal for shift levers, control levers, and push/pull rods. Phenolic plastic provides a hard smooth shiny finish. Available in one knob size, with tapped-hole sizes from 1/4-20 to 3/8-16. Molded-in brass insert provides superior thread strength. Non-standard thread sizes or molded-in studs are available in quantities of 500 and above. Made in USA.
Material
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Black phenolic plastic (glossy smooth finish, extremely hard, electrical insulator, operating temperatures to 300 Degree, resistant to oils and most common chemicals) | - | Molded-in Brass Insert | ✔ | ✔ |
Parts Specification

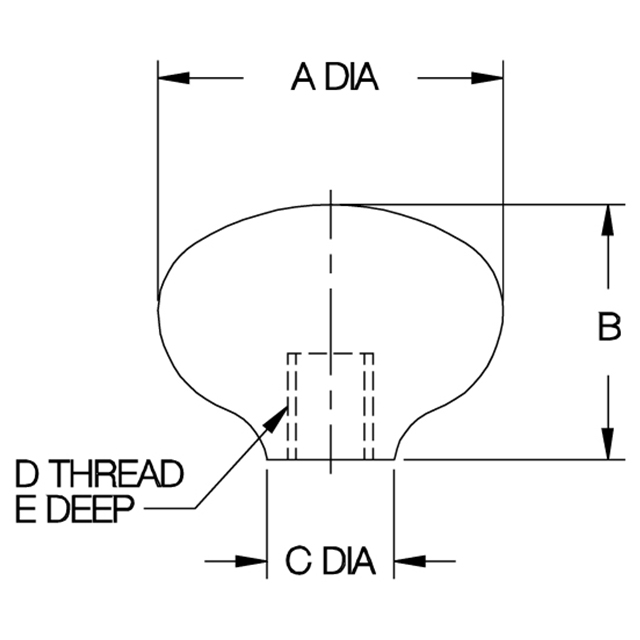

| Part Number | A DIA | B | C DIA | D THREAD | E |
| CL-552-OBK-PACKOF2 | 1-1/8 | 1-7/16 | 1/2 | 3/8-16 | 1/2 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Thread Size:
3/8-16"
Diameter (Inch):
1-1/8"
Diameter (Decimal Inch):
1.1300"
Diameter (mm):
28.58mm
