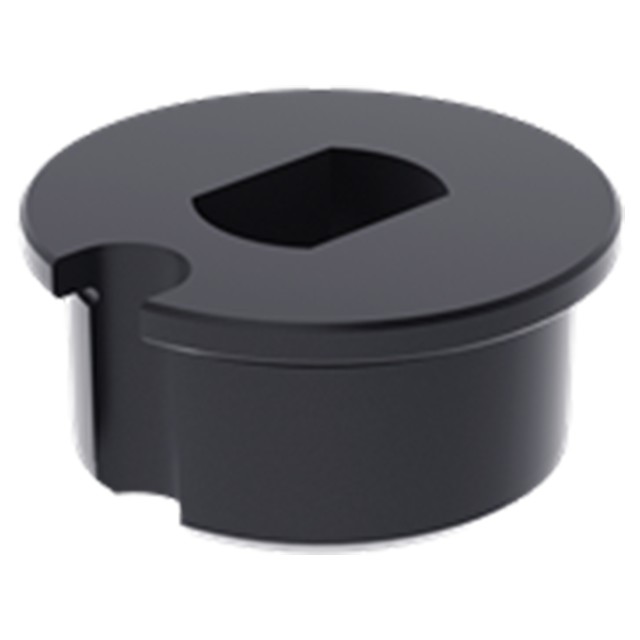

Headed Slotted Locator Bushings
Slotted Locator Bushings can be used with many types of alignment pins and locating pins to align two holes without binding. Precision bushing with a tight tolerance in one direction and full relief in the perpendicular direction. This headed version provides more resistance to axial loads. The head can be left exposed, or recessed by counterboring the installation hole. Made in USA.
Application Information
A standard press-fit bushing (for primary location) and a Slotted Locator Bushing (for secondary location) are used with L Pins to align two holes without binding.
Installation
To install, first drill and ream hole for roll pin (furnished), then bore large bushing hole for 0.0003-0.0005" press fit. Press in bushing and roll pin simultaneously for accurate orientation.
Material
Steel
Parts Specification
| Pin Diameter (Inch) | A | B Diameter (Inch) | C Diameter (Inch) | D Diameter (Inch) | G (Inch) | L (Inch) | M Diameter (Inch) | N (Inch) |
| 3/8" | 0.3751/0.3757 | 0.500" | 1.0000" | 1.125" | 1/16" | 0.40" | 3/16" | 3/8" |
