Carr Lane CL-8-EDP-1.50 | 1-1/4" Diameter x 1.500" Grip Length Economy Detent Pin

Product Information

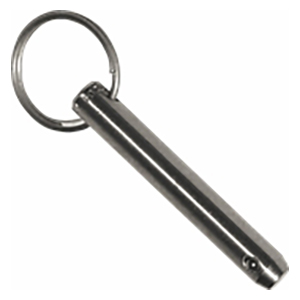

Economical quick-release alignment pin with a solid steel shank and one spring-loaded locking ball. This type of Detent Pin has a ring instead of a solid shoulder, for applications where exact grip length is not important. Locking ball holds the pin in place by spring force (not positive locking like a Ball Lock Pin). Simply push the pin to insert, and pull to remove. Made in USA. Available in shank diameters 3/16", 1/4", 5/16", and 1/2", steel material only, in the standard grip lengths listed below. For other diameters and grip lengths, see Marine Detent Pins (the stainless steel version of this pin) in Related Products below.

Technical Information

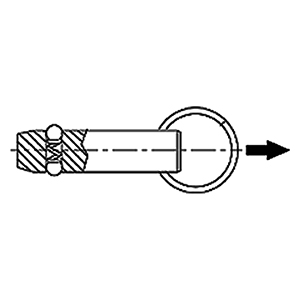

Locking ball holds the pin in place by spring force. Simply push the pin to insert, and pull to remove.

Optional Cable

To order pins with a standard cable assembly attached (Cable Assembly CL-82-KA-12.0 — #2 cable size, 12" long, with a terminal at the free end for a #10 or M5 attachment screw), add "-C" to the part number:          CL-4-EDP-1.50-S-CFor an optional 10" nylon lanyard, add "-NL" to the part number:          CL-4-EDP-1.50-S-NL

Parts Specification
