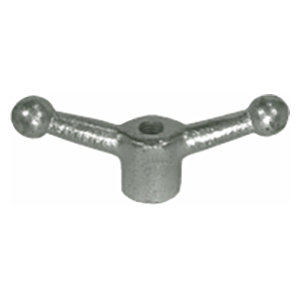

Product Information
Speed handles that are weighted for quick turning. Long arm extensions provide excellent leverage for hand tightening. Choice of two sizes, each available blank or tapped through, with tapped-hole sizes from 1/2-13 to 3/4-10 (M12 to M20 in metric). Made in USA.

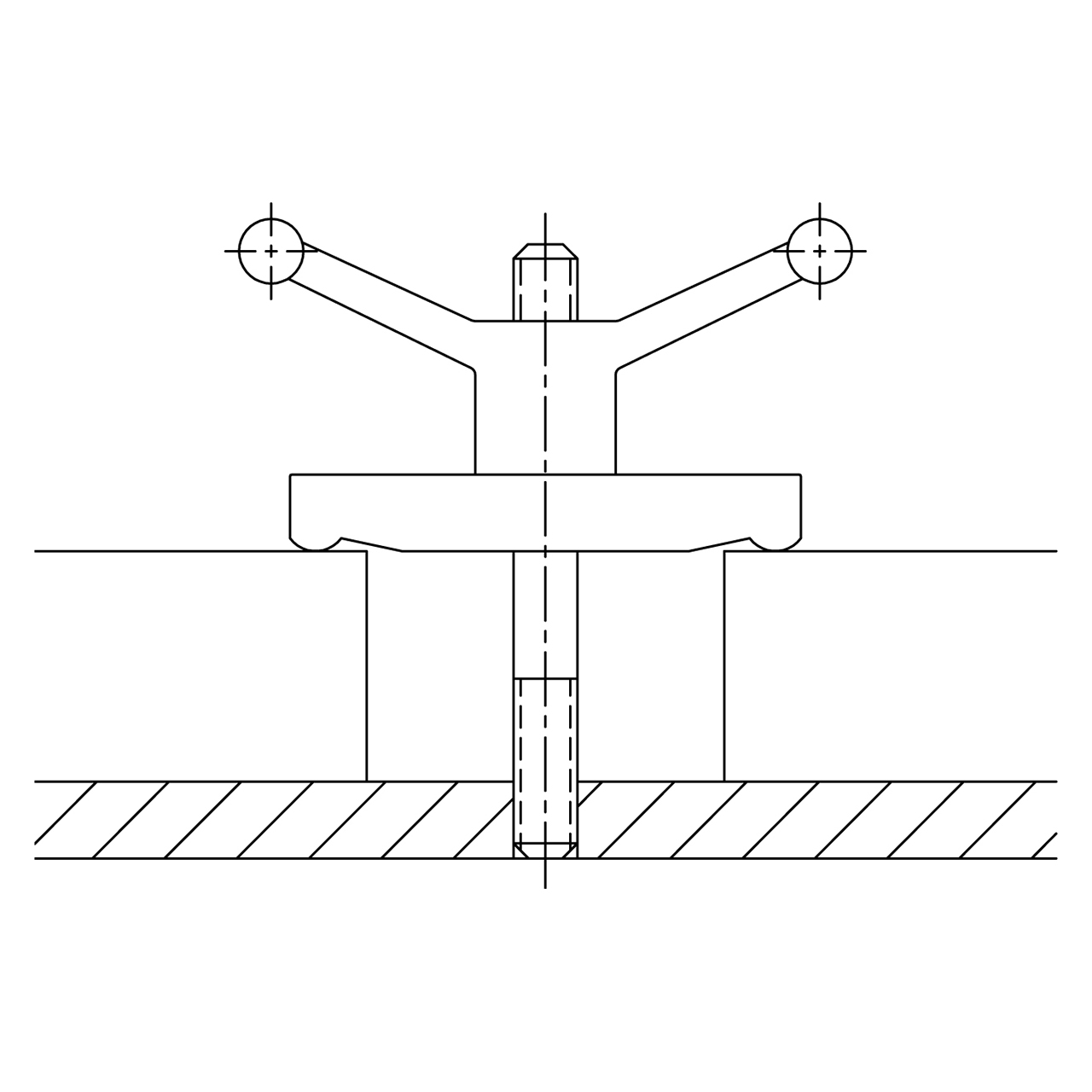

Application Information
Long arm extensions provide excellent leverage for hand tightening
Material
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Nodular iron per ASTM A536 class 65-45-12 | - | Zinc Plated Clear Chromate | ✔ | ✔ |

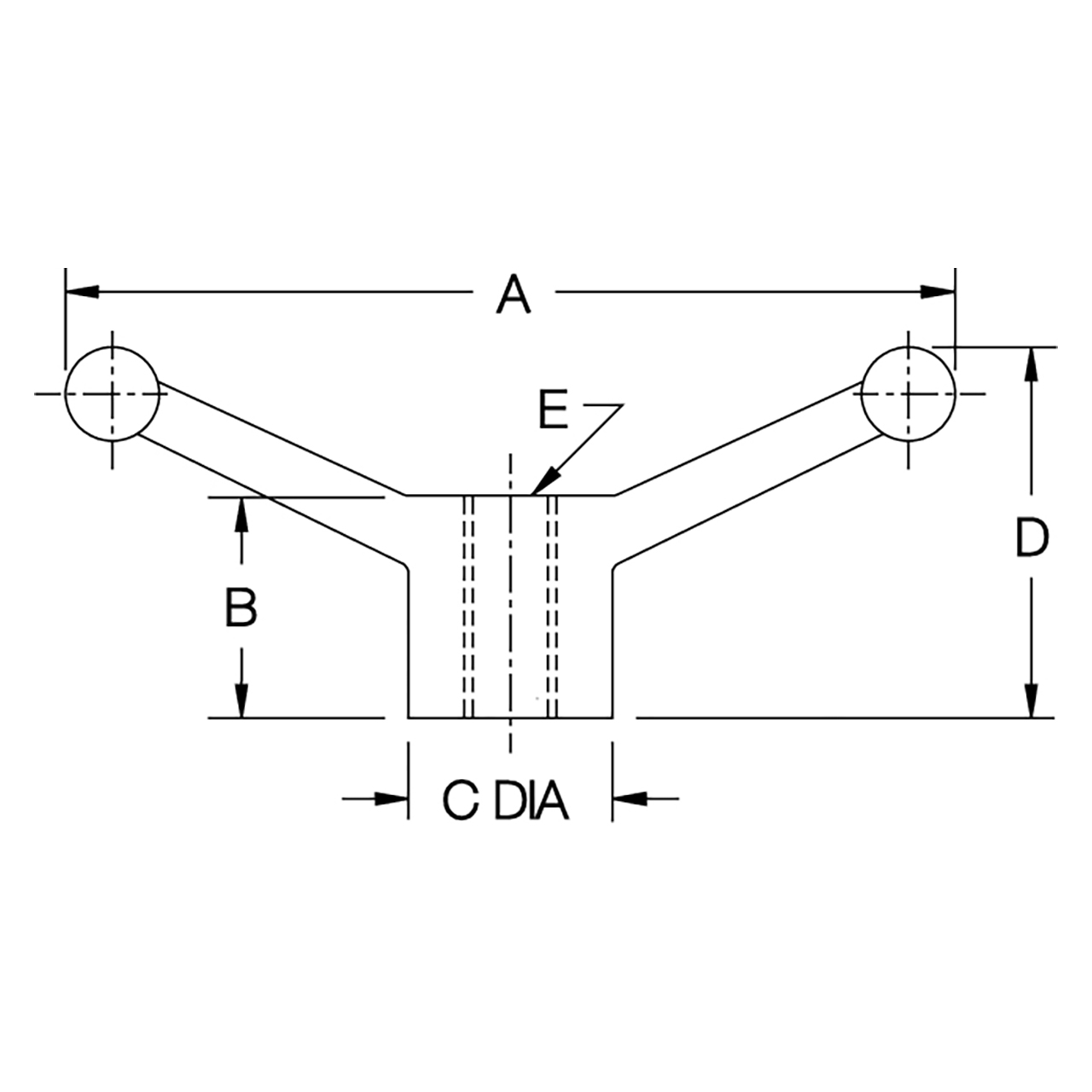

Parts Specification
| Part Number | A | B | C DIA | D | E |
| CL-8-SBH | 8 | 1-13/16 | 1-3/4 | 2-7/8 | — |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Diameter (Inch):
1-3/4"
Diameter (Decimal Inch):
1.7500"
Diameter (mm):
44.45mm
