Carr Lane CL-8-SLLB | 1/2" Diameter Slotted Locator Bushing

Product Information

Additional sizes available in stainless steel and Carbide! Slotted Locator Bushings can be used with many types of alignment pins and locating pins to align two holes without binding. Precision bushing with a tight tolerance in one direction and full relief in the perpendicular direction. Available for pin diameters from 1/8 to 1", including some number and letter sizes (5 to 25mm in metric). Many sizes are optionally available in hardened 440C stainless steel as well as carbide. Made in USA.

Application Information

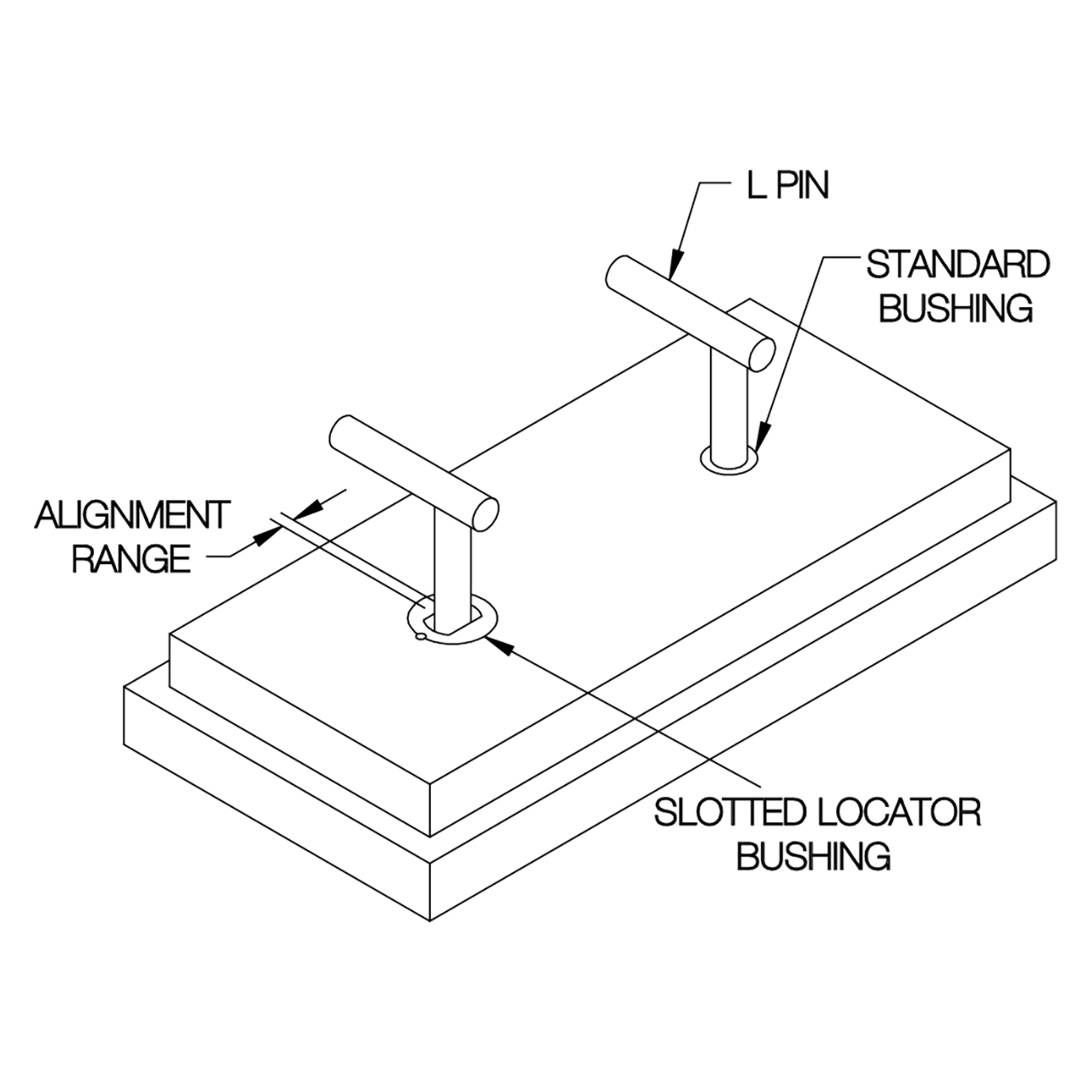

A standard press-fit P bushing (for primary location) and a Slotted Locator Bushing (for secondary location) are used with L Pins to align two holes without binding.

Videos

Slotted Locator Bushings This application uses a standard press-fit P bushing (for primary location) and a Slotted Locator Bushing (for secondary location) are used with L Pins to align two holes without binding.

Installation

To install, first drill and ream hole for roll pin (furnished), then bore large bushing hole for .0003-.0005" press fit. Press in bushing and roll pin simultaneously for accurate orientation.

Material

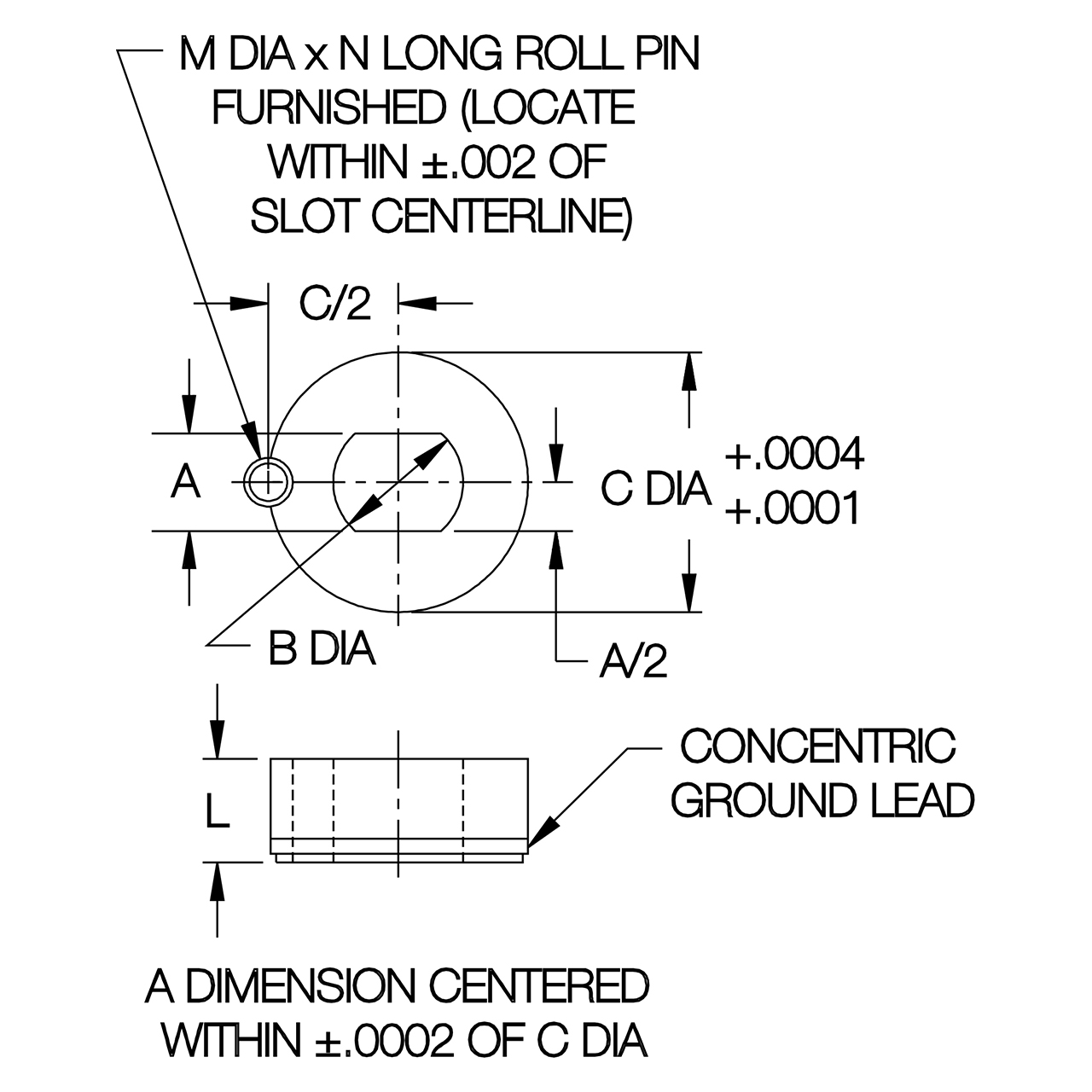

Parts Specification
