Carr Lane CL-8-TN | 3/4-10" Thread T Nut

Product Information

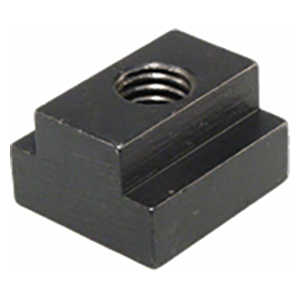

Carr Lane Mfg. T Nuts, or tee nuts, are high-strength hardened nuts, fully machined to fit exactly in a specific machine-table T slot. Also known as blind nuts, they are used to fasten wood, particle, or composite materials into a workpiece. They feature a long, thin body and a flange on a single end. They provide exceptional retention in wooden workpieces as the bolt is tightened. These are available in sizes for virtually any inch or metric machine-table slot. Each has a choice of thread sizes. Standard T Nuts are a mild steel material with a black oxide finish, although a stainless-steel variation is also available. Carr Lane Mfg.’s products are proudly made in the USA.

Technical Information

Mounting tooling plates on T-Slotted Tables Accurately placing tooling plates on T-slotted tables requires two locating keys. These keys should be placed in the middle table slot. Standard and thick rectangular plates can both be placed. These plates are fashioned using T Nuts.Guide To Strap Clamps A clamping strap is a basic tool composed of three elements: a strap, a fastener, and a heel support. Pressure is applied to the fastener, which transmits it through the strap to the object it is holding. This is done while the heel support serves as the pivot and support for the back of the strap.T nuts are often used in strap clamp assemblies.

Application Information

To begin using this product, drill a hole through the material you are using. The hole should be around the same size as the nut, to fit through without much room. On the other side, place a washer onto the bolt. Move the bolt threads through the drilled hole and begin threading the bolt. Finally, tighten the bolt so the nut creates a secure hold. Continue tightening until it is all the way in, and the bolt tightens.T Nuts are commonly used in woodworking applications.

Safety-Stop Feature

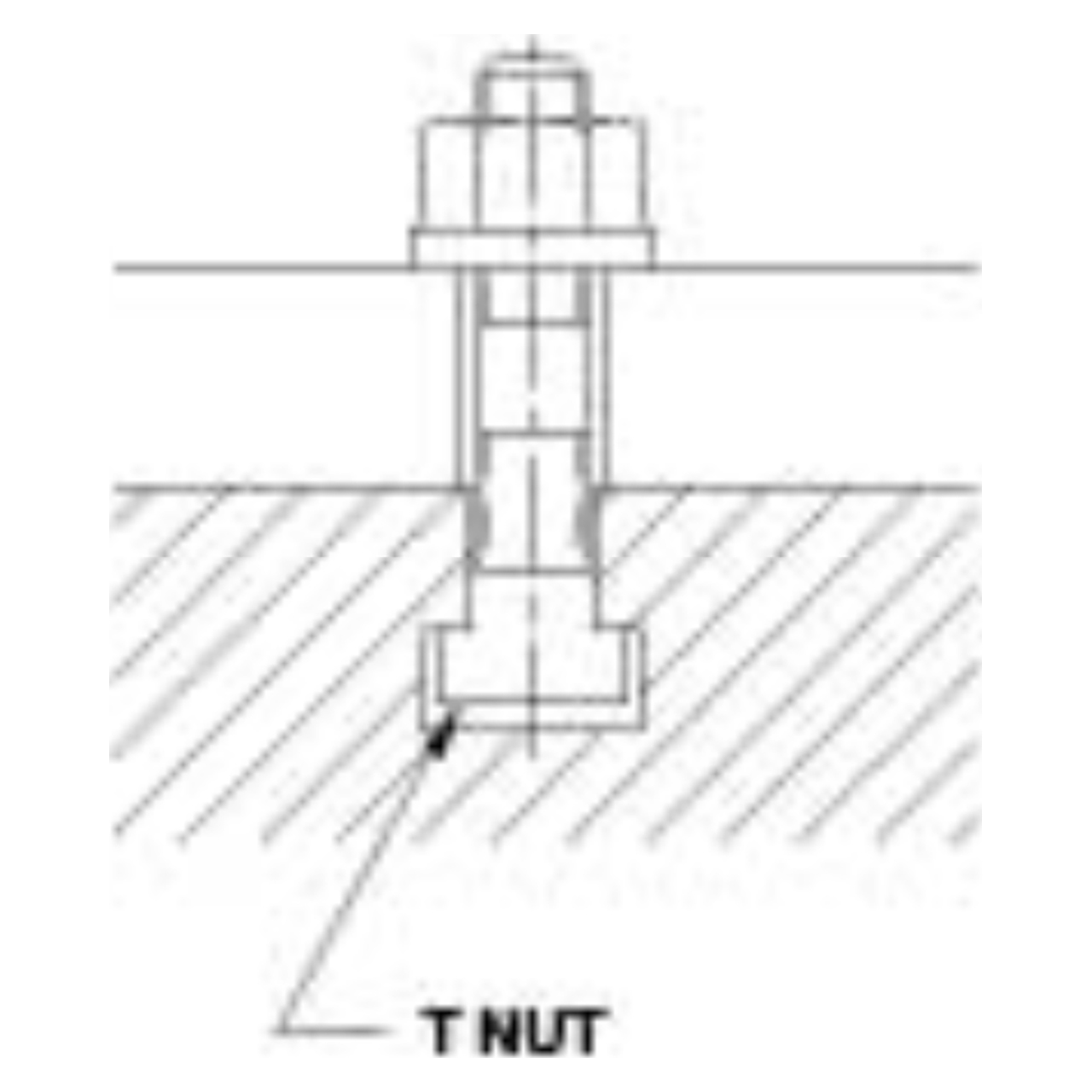

They are tapped to a precise, limited depth so that the threads stop one thread short of going through. This feature stops the stud before it extends through and contacts the bottom of the T slot. This is where continued tightening could jack the nut up and out of the table, breaking the table slot. This important feature prevents accidental damage to expensive machine tables.

Material

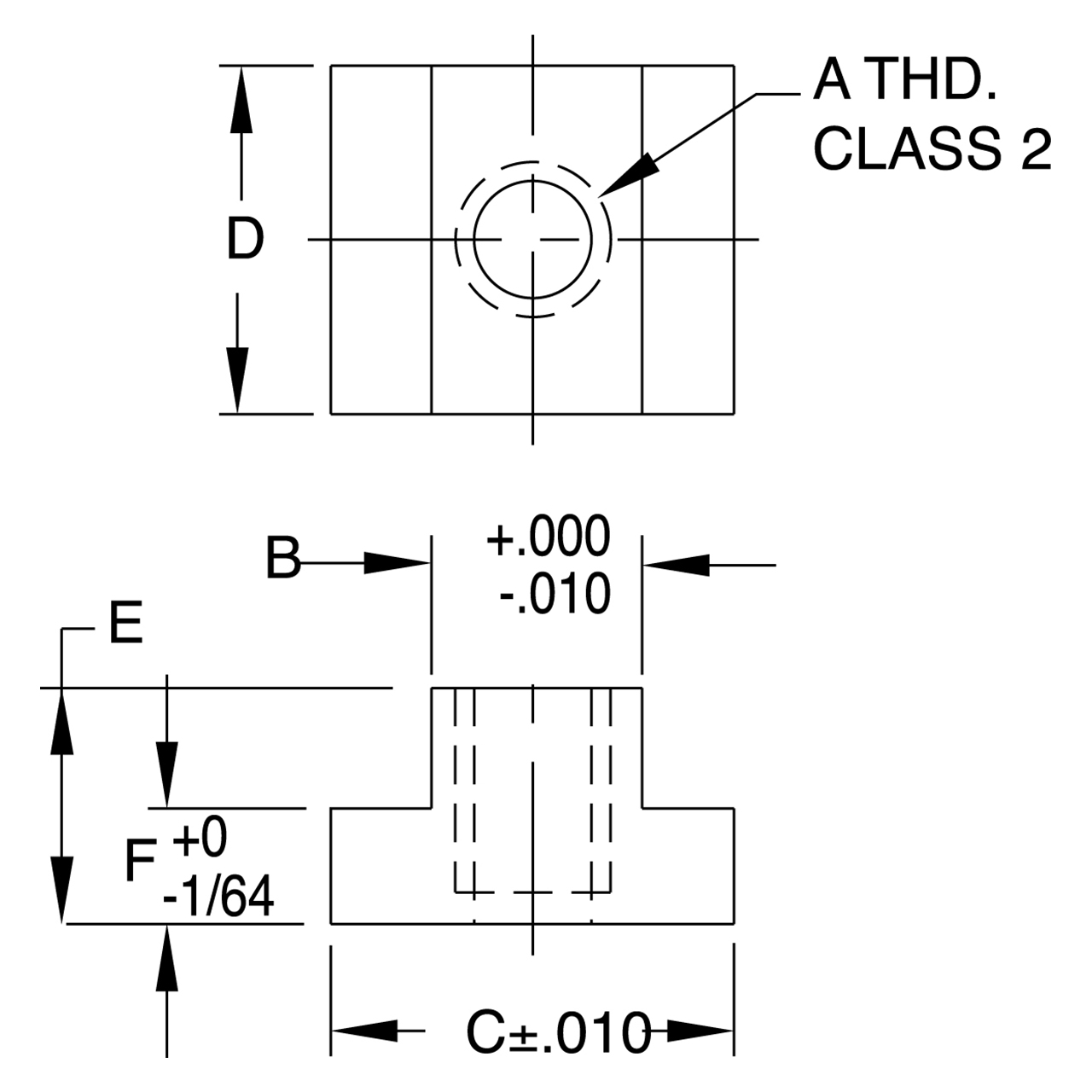

Parts Specification
