Product Information

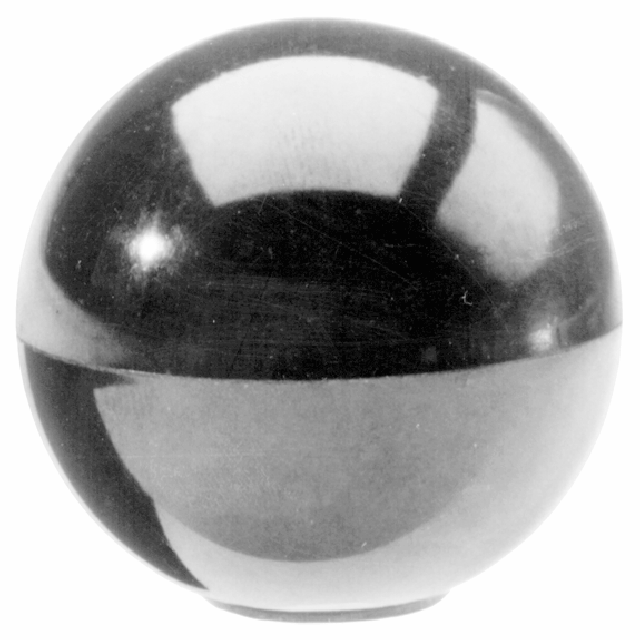

Durable multi-purpose plastic knob, suitable for many applications. The phenolic version shown here is our most popular, with a hard smooth shiny finish. Choice of seven knob sizes, with tapped-hole sizes from #8-32 to 5/8-18 (M5 to M16 in metric). Molded-in brass insert provides superior thread strength. Non-standard thread sizes or molded-in studs are available in quantities of 500 and above. Made in USA.
Application Information
Available Sizes
3/8-163/8-241/2-135/8-18M10M12M16 3/8-161/2-13M10M12 1/4-205/16-183/8-163/8-241/2-131/2-20M10M12 1/4-205/16-183/8-163/8-24M8M10 #10-321/4-201/4-285/16-185/16-243/8-16M6M8 #8-32#10-321/4-20M5M6
Material
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Black phenolic plastic (glossy smooth finish, extremely hard, electrical insulator, operating temperatures to 300 Degree, resistant to oils and most common chemicals) | - | Molded-in brass insert | ✔ | ✔ |
Parts Specification

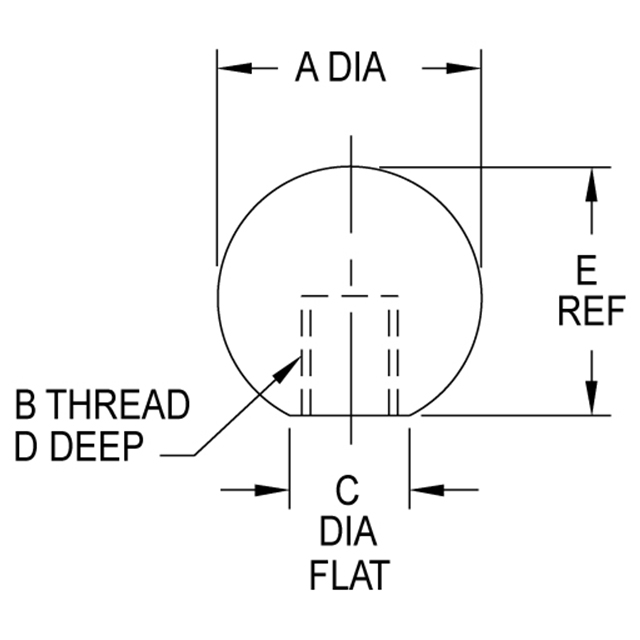

| Part Number | A DIA | B THREAD | C DIA | D | E |
| CL-872-PB-PACKOF2 | 1-7/8 | 1/2-13 | 3/4 | 5/8 | 1-51/64 |
