Product Information

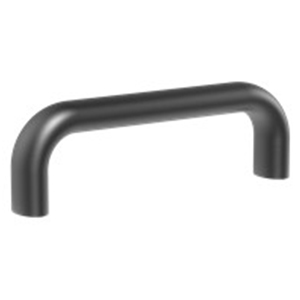

Attractive, modern-design handle that provides a comfortable grip with good ergonomic features. Available in either a durable powder-coated pebble finish or plain tumbled finish. Choice of four handle sizes, available with inch or metric tapped mounting holes. Molded-in brass inserts provide superior thread strength.
Material
| Powder Coated | ||||
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Aluminium Extrusion | - | Black Powder-Coated | ✔ | ✔ |
| Plain Tumbled Finish | ||||
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Aluminium Extrusion | - | Tumbled | ✔ | ✔ |
Parts Specification

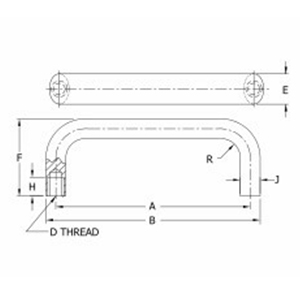

| Part Number | A (mm) | B (mm) | D THREAD | THREAD PITCH (mm) | E (mm) | F (mm) | H (mm) | J (mm) | R (mm) |
| CLM-128-PHR-6 | 128 | 141 | M6 | 1 | 20 | 51 | 10 | 13 | 13 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Thread Size:
M6
Pitch (Inch):
3/64"
Pitch (Decimal Inch):
0.0400"
Pitch (mm):
1.00mm
