Carr Lane CLR-3548-080 | 65.00mm Width Concentric Fixture Clamp

$292.05
Brand:
Carr Lane
Width (Inch):
2-9/16"
Width (Decimal Inch):
2.5600"
Width (mm):
65.00mm
SKU:
50023759
Weight:
1.23 LBS
Shipping:
Free Shipping

Product Information

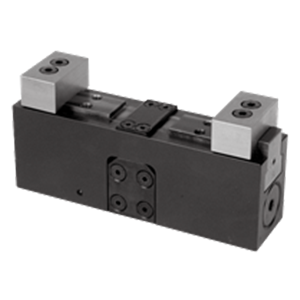

3600 psi max Double Acting Fixture Clamps are extremely compact, high-precision power vises designed to be incorporated into workholding fixtures. Unlike standard vises, Fixture Clamps do not have a leadscrew for adjustment – instead using exchangeable, machinable clamping jaws that must be custom sized for the workpiece. Slim, solid vise body with high-rigidity and complete protection against dirt and chips. Manifold mounting is standard for maximum compactness and mounting flexibility, but fluid can alternatively be supplied using standard fittings by adding an optional Adaptor Plate. The concentric version shown here is designed to center and clamp a workpiece using an exterior contour as a reference surface. High-precision centring with +/-.0008" repeatability. Available in two sizes, with 40mm and 65mm jaw widths. Clamping force at 3600 psi:          2100 Lbs          3300 Lbs

Clamping Action

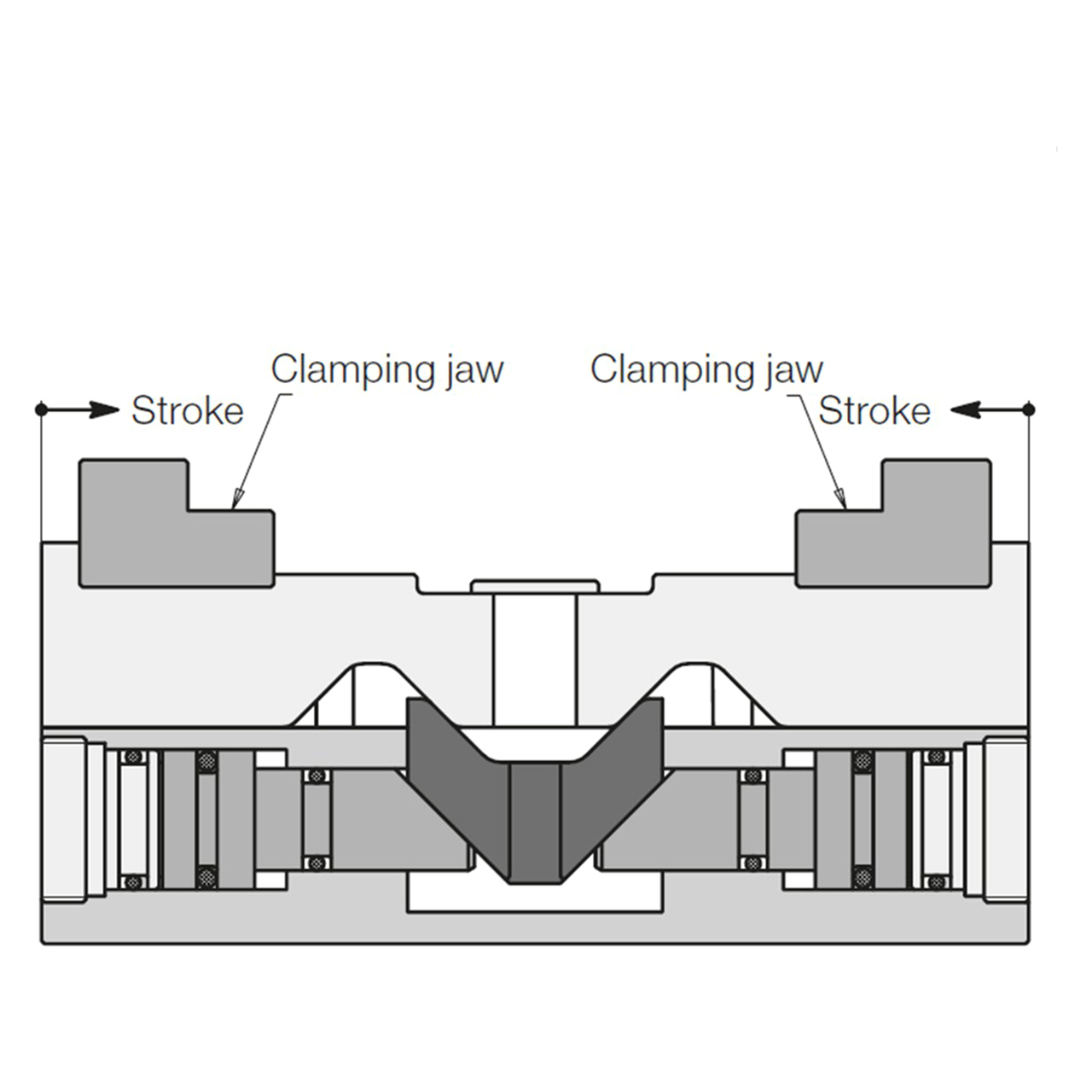

Applying fluid pressure to the A (clamping) port advances two hydraulic pistons integrated into the vise body. The piston forces are transferred via a guided connecting link to the two clamping slides so that concentric synchronization is obtained. Switching pressure to the B (unclamping) port moves the slides positively outward, via the same connecting link. Self-centring Fixture Vises can only be used to clamp inward, on the exterior of a workpiece.

Design Considerations

Self-Centering Fixture Clamps can only be used for exterior clamping. Every 500 clamping cycles, the clamping slide should be lubricated using port S provided for central lubrication. Never use up the entire clamping stroke, to ensure safe clamping of the workpiece with full force. Clamping jaws should always rest against the end supports, because the fastening screws alone cannot resist the maximum clamping forces.

Mounting & Fluid Supply

Self-Centering Fixture Vises have two locating holes underneath for dowel pins, to provide precise alignment on a fixture plate. Fasten from below with eight socket-head cap screws (Mounting Option 1). If fastening from below is not possible, or to use standard fittings instead of manifold mounting, order the optional Adaptor Plate (Mounting Option 2 or 3). Self-Centering Fixture Vises can be mounted in any position, horizontal or vertical. Fluid is supplied to manifold ports A and B underneath the vise through drilled passages in the fixture (install two CLR-9210-132-F Connecting Inserts). O-ring port S is provided for central lubrication of the clamping slide. Do not use NPT fittings.

Clamping Jaws

Because Fixture Vises do not have a leadscrew for adjustment, clamping jaws must be custom sized for the workpiece. Exchangeable, machinable blank clamping jaws (4130 steel) are sold separately – see Dimensions page for part numbers, as well as for dimensions of user-manufactured jaws.

Material

MATERIALHEAT TREATFINISHDFARSRoHS
Steel--

Parts Specification

Part NumberDESCRIPTIONFIXTURE CLAMP JAW WIDTHQUANTITY REQUIRED PER FIXTURE CLAMP
CLR-3548-080Blank Clamping Jaw65mm2
