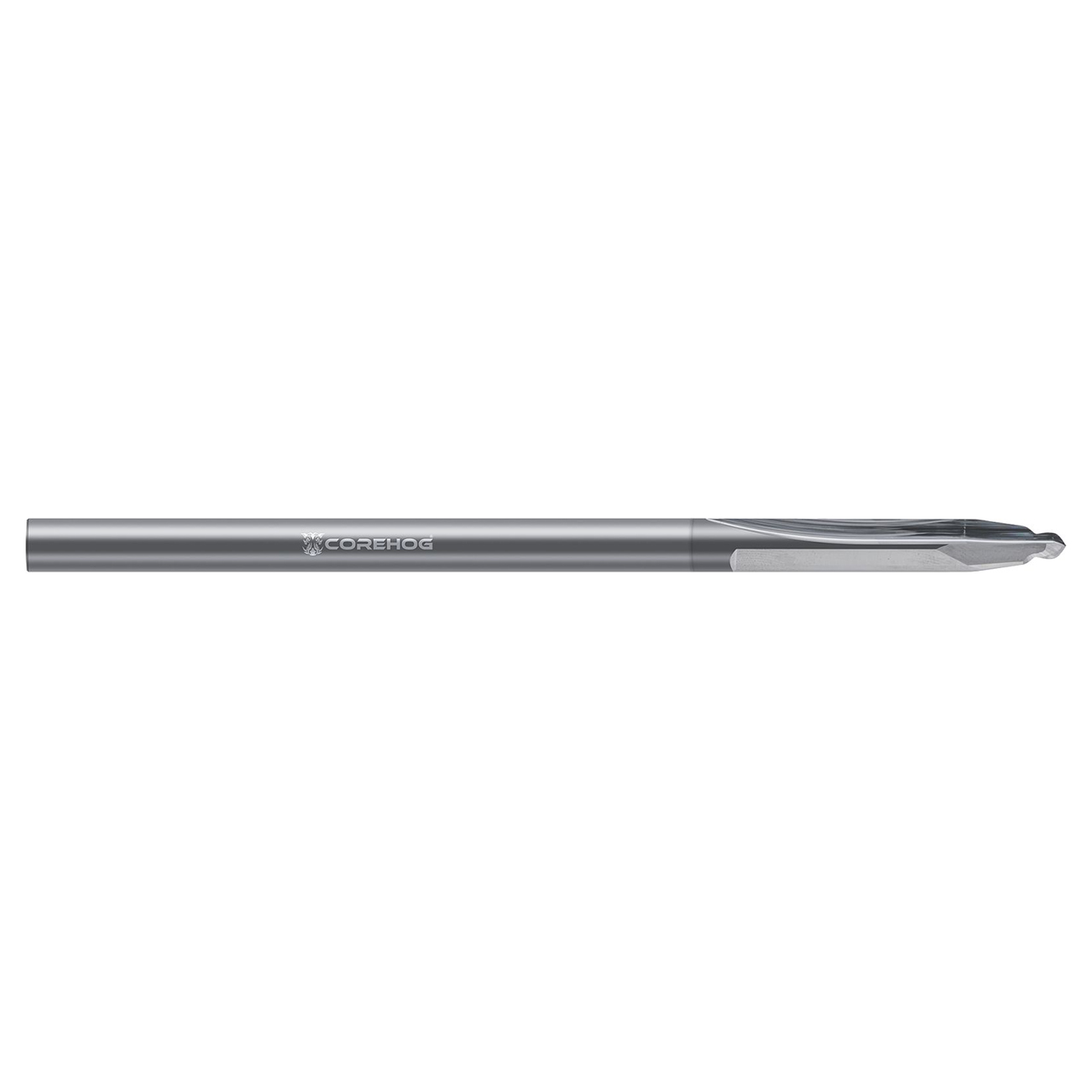

This fully stocked selection of CoreHog CFRP drills, featuring specially engineered geometry that provides outstanding tool life, finish, and repeatability, delivers unmatched results in CFRP holemaking operations.
Features:
Features- Provides superior results in CFRP while delivering excellent performance in other laminate and stack composite materials
- Designed with high strength and rigidity while maintaining tight tolerance
- For use in both hand and CNC drilling operations
- Solid carbide
- Precision manufactured in the USA
Product Specifications
| Manufacturer Part Number | C46975 |
| Drill Diameter (Inch) | 0.0980" |
| Flute Length (Inch) | 1.0000" (1) |
| Shank Diameter (Inch) | 0.0980" |
| Overall Length (Inch) | 6.000" (6) |
| Size | #40 |
| Assembly Size Pairing | #40 |
| Metric | N |
| Coating | Uncoated |
| Substrate | Solid Carbide |
| Number of Flutes | 2 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
CoreHog
Flute Length (Inch):
1"
Flute Length (Decimal Inch):
1.0000"
Flute Length (mm):
25.40mm
Shank Diameter (Inch):
3/32"
Shank Diameter (Decimal Inch):
0.0980"
Shank Diameter (mm):
2.49mm
Overall Length (Inch):
6"
Overall Length (Decimal Inch):
6.0000"
Overall Length (mm):
152.40mm
Finish/Coating:
Uncoated
