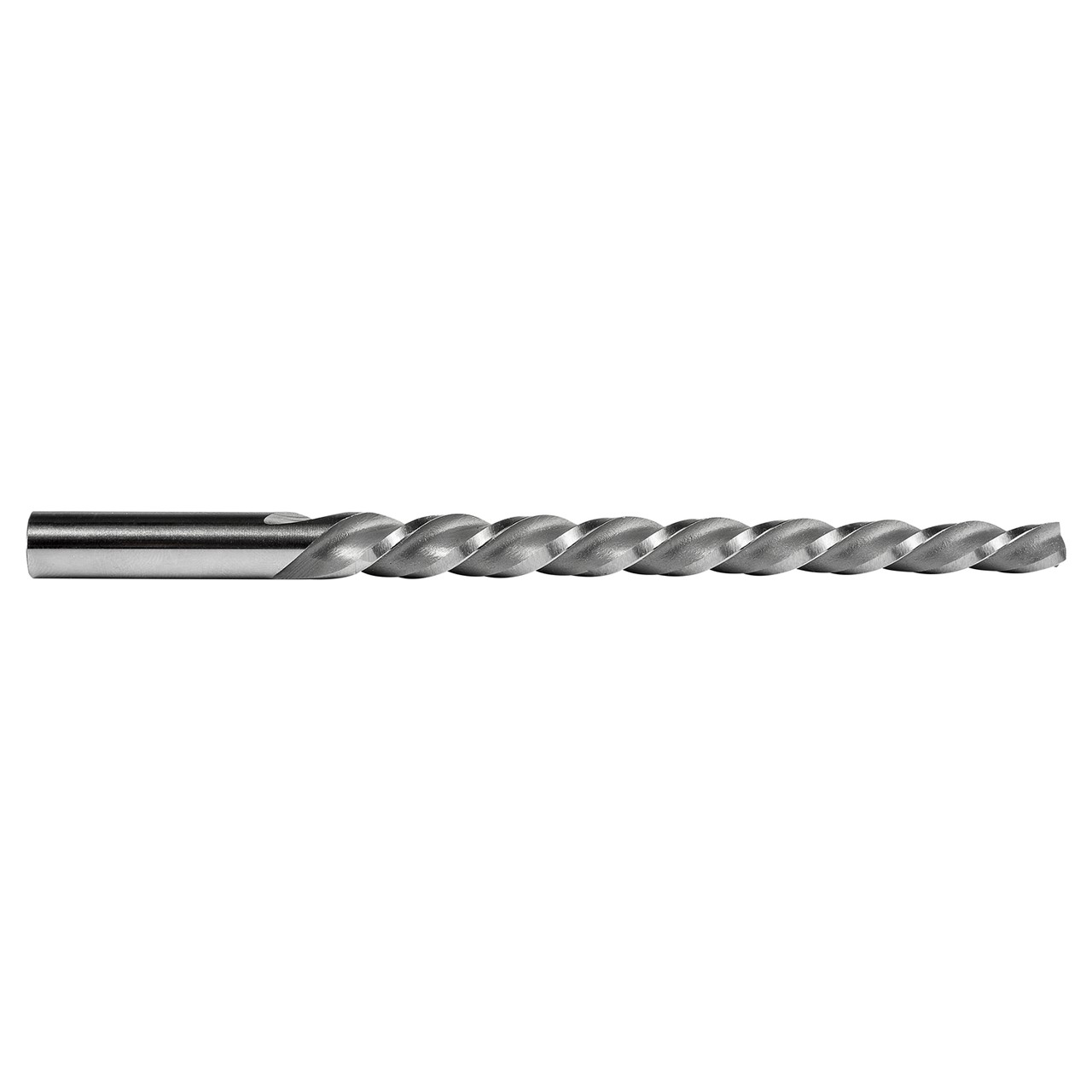

Taper pin machine reamer with left hand fast spiral flutes and a cylindrical shank, large end diameter 0.0810" with an overall length of 1.15/16", a flute length of 15/16" and 0.0611 small end diameter, manufactured in accordance to ANSI B94.2-1983(R1988) standards for reaming tapered pin holes with a 1:48 taper into which standard number 6/0 taper pins (per ASA B5.20-1958) will fit, HSS with bright finish for machining free machining and plain carbon steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys.
| Flute Count | 2 |
| Connection Diameter (Inch) | 0.081" |
| Cutting Diameter (Inch) | 0.0611" |
| Overall Length (Inch) | 1.9375" |
| Material Code | HSS |
| Cutting Direction | Right Hand |
| Coating | Bright Silver |
| Surface Color | Original surface |
