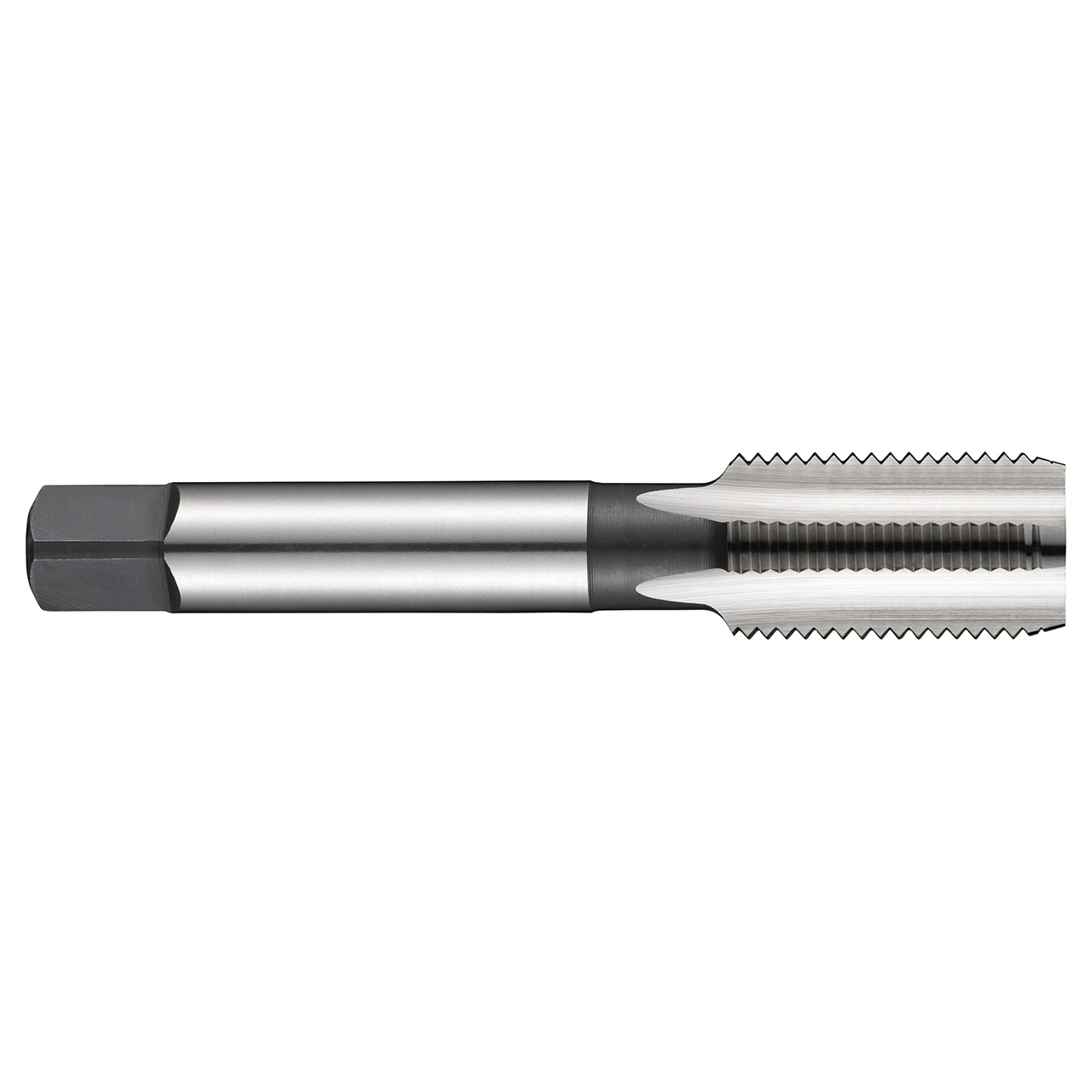

Straight flute tap NO3 with a 2-3xP semi-bottoming lead, for Panzergewinde (steel conduit thread) PG21 with 16 TPI and Normal class of fit, dimensions according to DIN 40432 standard with 22.0mm shank and 18.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and copper or copper alloys.
Product Specifications
| Connection Diameter (Inch) | 0.8661" |
| Overall Length (Inch) | 3.5433" |
| Clamping Width (mm) | 18mm |
| Thread Diameter (mm) | 28.3mm |
| No of Flutes | 4 |
| Clamping Length | 21 |
| Thread Diameter Size | 21 |
| Threading Length (mm) | 22mm |
| Material Code | HSS |
| Thread Tolerance Class | Normal |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Surface Color | Bright Silver |
| Thread Form | PG |
