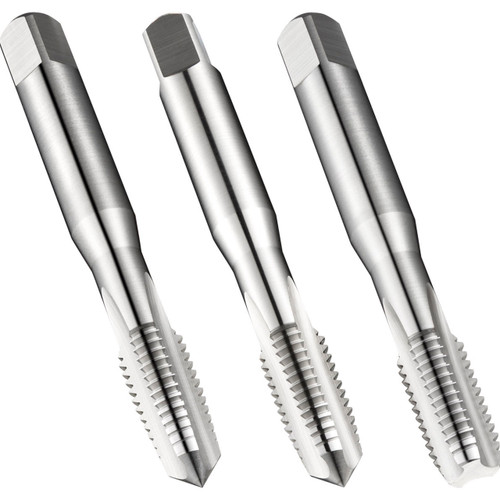

Set of straight flute hand taps NO6 for ISO-Metric thread M3.5 with 0.60mm pitch and 6H class of fit, consisting of 1 tap with a 6-8xP taper lead, 1 tap with a 4-6xP plug lead and 1 tap with a 2-3xP semi-bottoming lead, dimensions according to ISO 529 standard with 3.55mm shank and 2.8mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel.
Product Specifications
| Connection Diameter (Inch) | 0.1398" |
| Overall Length (Inch) | 1.9685" |
| Clamping Width (mm) | 2.8mm |
| No of Flutes | 3 |
| Usable Length (mm) | 14mm |
| Thread Pitch (mm) | 0.6mm |
| Clamping Length | 5 |
| Thread Diameter Size | 3.5 |
| Threading Length (mm) | 14mm |
| Material Code | HSS |
| Thread Tolerance Class | 6H |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Surface Color | Bright Silver |
| Thread Form | M-Metric coarse |
