Dormer E8103/4 | 0.59" Diameter 4 Flute TiAlN/Top Coated Spiral Flute Tap

$157.05
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15026060
Weight:
5.38 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

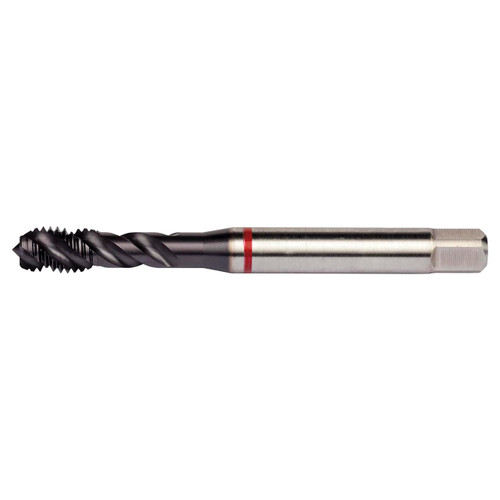

Spiral flute tap Red Shark with chamfer form C with a 2-3xP semi-bottoming lead, for Unified National Coarse thread UNC 3/4" with 10 TPI and 2B class of fit with H5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.5900" shank and 0.4390" square drive, powder metallurgical HSS-E with TiAlN-Top coating and 45° helix angle for 2.5xD blind hole threading in plain carbon, alloy and tool steel.


Product Specifications
Connection Diameter (Inch)0.59"
No of Flutes4
Flute Helix Angle45
Thread Diameter Size3/4
Material CodeHSS-E-PM
Thread Tolerance Class2B
Threading Length (Inch)0.984"
Cutting DirectionRight Hand
CoatingTiAlN/Top
Tap Chamfer StyleC 2-3
Surface ColorBlack - Deep Purple
Thread FormUNC-Unified Coarse
